As electronic systems become increasingly complex, the role of transient voltage suppression diodes (TVS) as a critical component for circuit protection is more important than ever. The SMDJ33CA, a high-performance TVS diode, with its precisely designed parameters and outstanding protection capabilities, plays an irreplaceable role in various applications. This article will explore the specific application scenarios of the SMDJ33CA, highlighting its extensive potential and value.

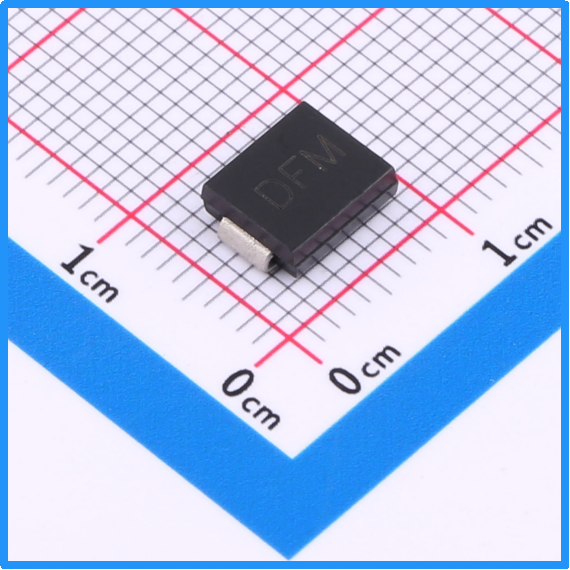

Slkor Transient Protection Diode SMDJ33CA product photo

Key Parameters:

- Maximum Reverse Working Voltage (VRWM): 33V

- Minimum Breakdown Voltage (VBR min): 36.7V

- Leakage Current (IR): 2uA

- Clamping Voltage (VC): 53.3V

- Package Type: SMC

1. Lightning Strike Protection:

Lightning strikes represent one of the most severe threats to electronic devices. When lightning strikes a building or outdoor equipment, it generates extremely high transient overvoltages, which often exceed the tolerance limits of circuit components. Thanks to its high breakdown voltage and excellent clamping capability, the SMDJ33CA plays a key role in lightning strike protection circuits. It can quickly clamp the overvoltage within a safe range and direct excess current to the ground, effectively protecting the circuit from lightning-induced damage.

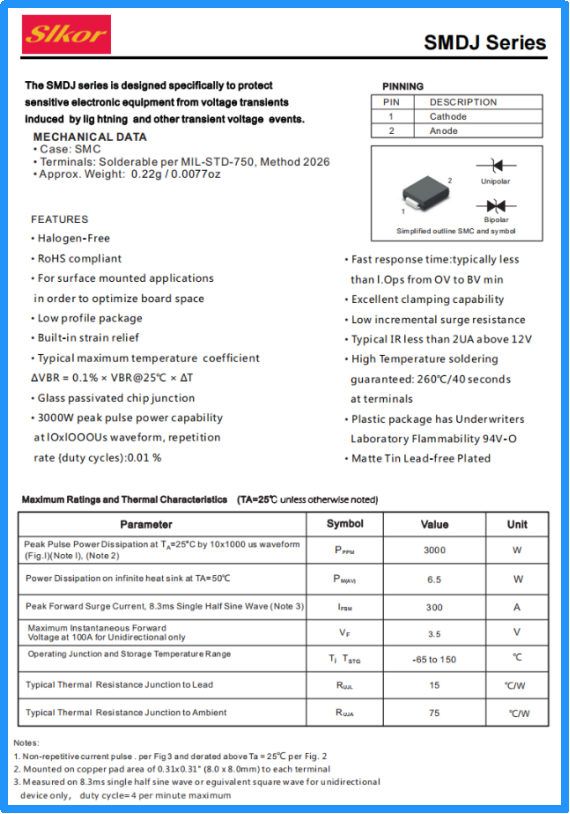

Slkor Transient Protection Diode SMDJ33CA specification

2. Electrostatic Discharge (ESD) Protection:

Electrostatic discharge is a common threat to electronic devices during manufacturing, transportation, and usage. Friction or contact between the human body and equipment can generate static electricity, potentially damaging the circuits. The SMDJ33CA’s extremely low leakage current and high response speed make it an ideal choice for ESD protection. It can quickly respond to transient overvoltages caused by static discharge, clamping them to a safe level and thereby protecting circuit components from damage.

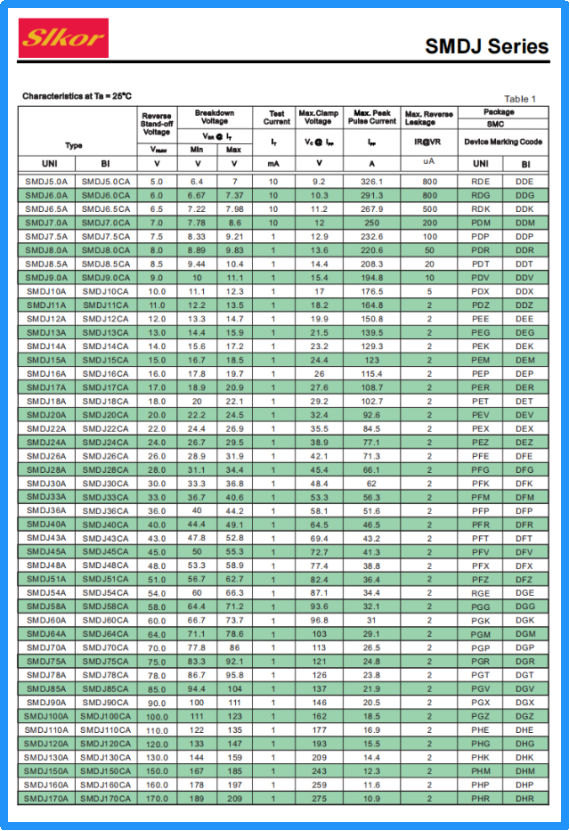

Parameters of Slkor Transient Protection Diode SMDJ33CA

3. Power Line Protection:

In power lines, transient overvoltages may arise due to grid fluctuations, switching operations, and other causes. If not suppressed, these overvoltages can damage power circuits and downstream components. The SMDJ33CA can be used to protect power lines. Its precisely designed breakdown voltage and clamping voltage ensure that in the event of overvoltage, it quickly clamps it within a safe range, thereby safeguarding the stability of the power circuit and its connected devices.

4. Data Line Protection:

Transient overvoltage is also a significant issue in data transmission lines, potentially interfering with normal data transmission or even leading to data loss or equipment damage. The SMDJ33CA, with its compact packaging and high performance, is an excellent choice for protecting data lines. It can closely fit the circuit board, offering effective transient overvoltage protection and ensuring stable data transmission.

5. Industrial Control and Automation Equipment:

In the industrial control and automation sector, devices often need to operate stably in harsh electromagnetic environments. The SMDJ33CA transient voltage suppression diode can be used to protect these devices from transient overvoltage surges. Its high reliability and stability ensure that the equipment operates consistently in complex electromagnetic environments, improving the overall performance and reliability of industrial control and automation systems.

6. Automotive Electronics:

Transient overvoltage is also a threat in automotive electronic systems. For instance, ignition systems and onboard communication devices may generate transient overvoltages. The SMDJ33CA can be used to protect automotive electronics systems. Its compact package and excellent electrical performance make it well-suited to the stringent space, weight, and performance requirements of automotive electronics.

In conclusion, the SMDJ33CA transient voltage suppression diode, with its outstanding performance and wide range of applications, demonstrates remarkable value in the field of circuit protection. Whether for lightning strike protection, ESD protection, or protection of power lines, data lines, industrial control and automation equipment, and automotive electronics systems, the SMDJ33CA provides a reliable protection solution that ensures the stable operation of electronic systems.
