Single Buffer/Driver With Open-Drain Output

Description

l The 74LVC1G07 provides the non-inverting buffer. The output of this device is an open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Features

l Wide supply voltage range from 1.65V to 5.5V

l 5V tolerant inputs for interfacing with 5V logic -

l 24mA output drive (VCC=3.0V)

l CMOS low power consumption

l Latch-up performance exceeds 250mA

l Direct interface with TTL levels

l Input accepts voltages up to 5V

l Specified from -40℃to +105℃

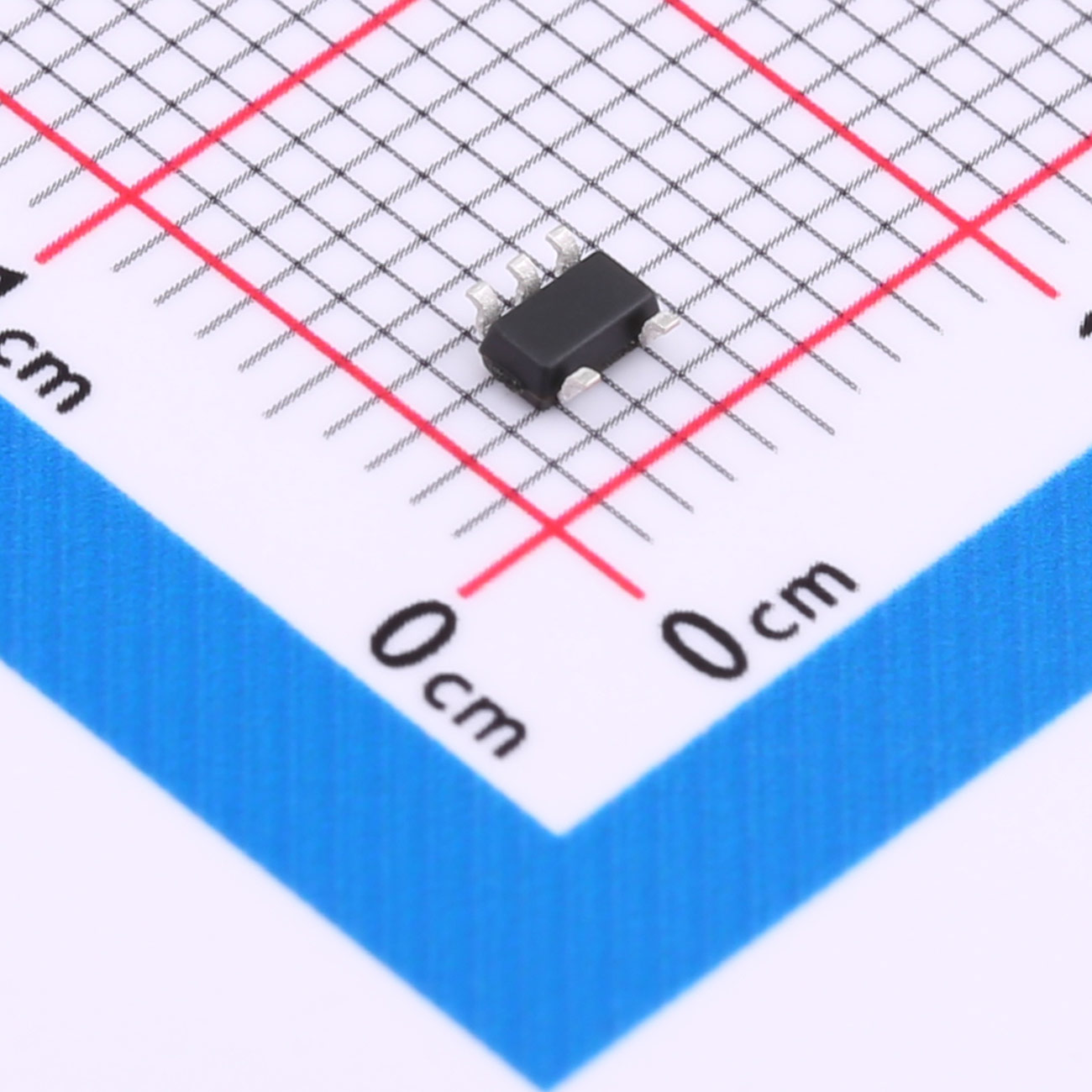

l Packaging information: DBVRSOT-23-5/

   DCKR SOT-353
