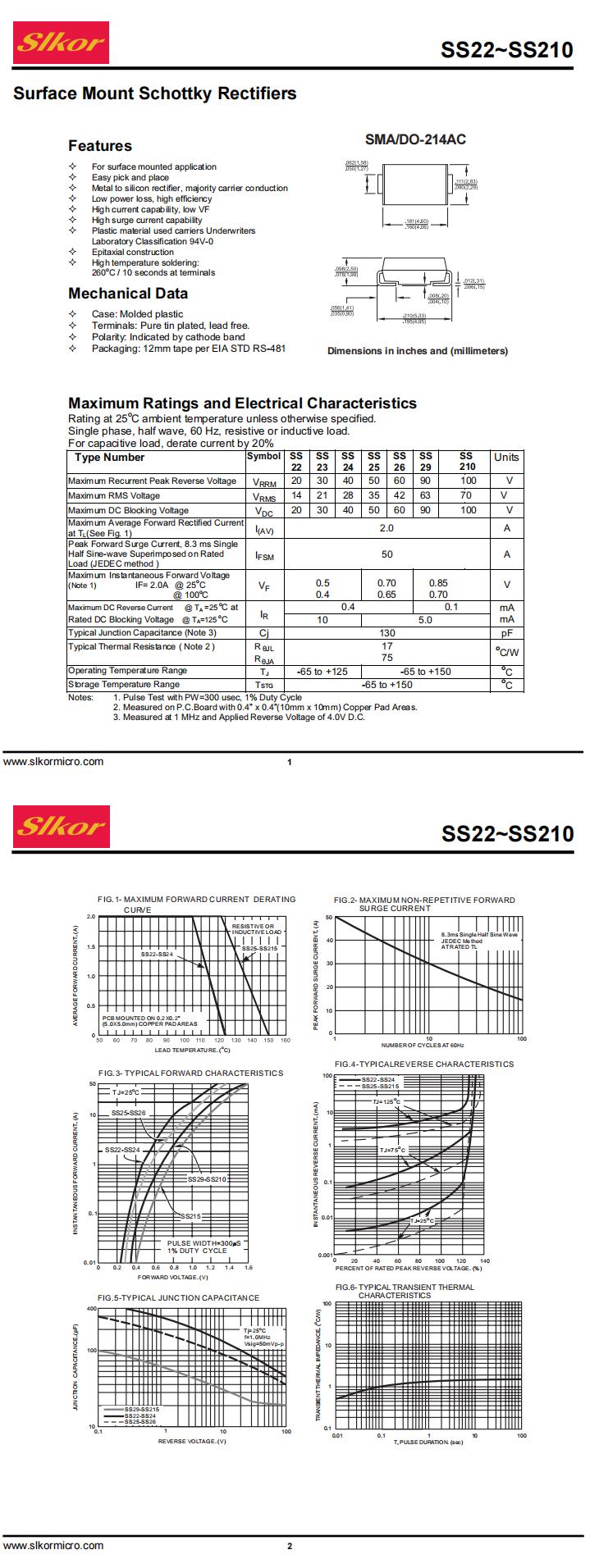

Surface Mount Schottky Rectifiers

Features

For surface mounted application

Easy pick and plaoe

Metal to silicon rectifier, majorty carrer conduction

Low power loss, high efficiency

High currert capability low VF

High surge current capabilty

Plastic material used camriers Underwriters Laboratory Classification 94V-0

Epitaxial construction

Hig h temperature soldering: 260C/10 seconds at temminals

Mechanical Data

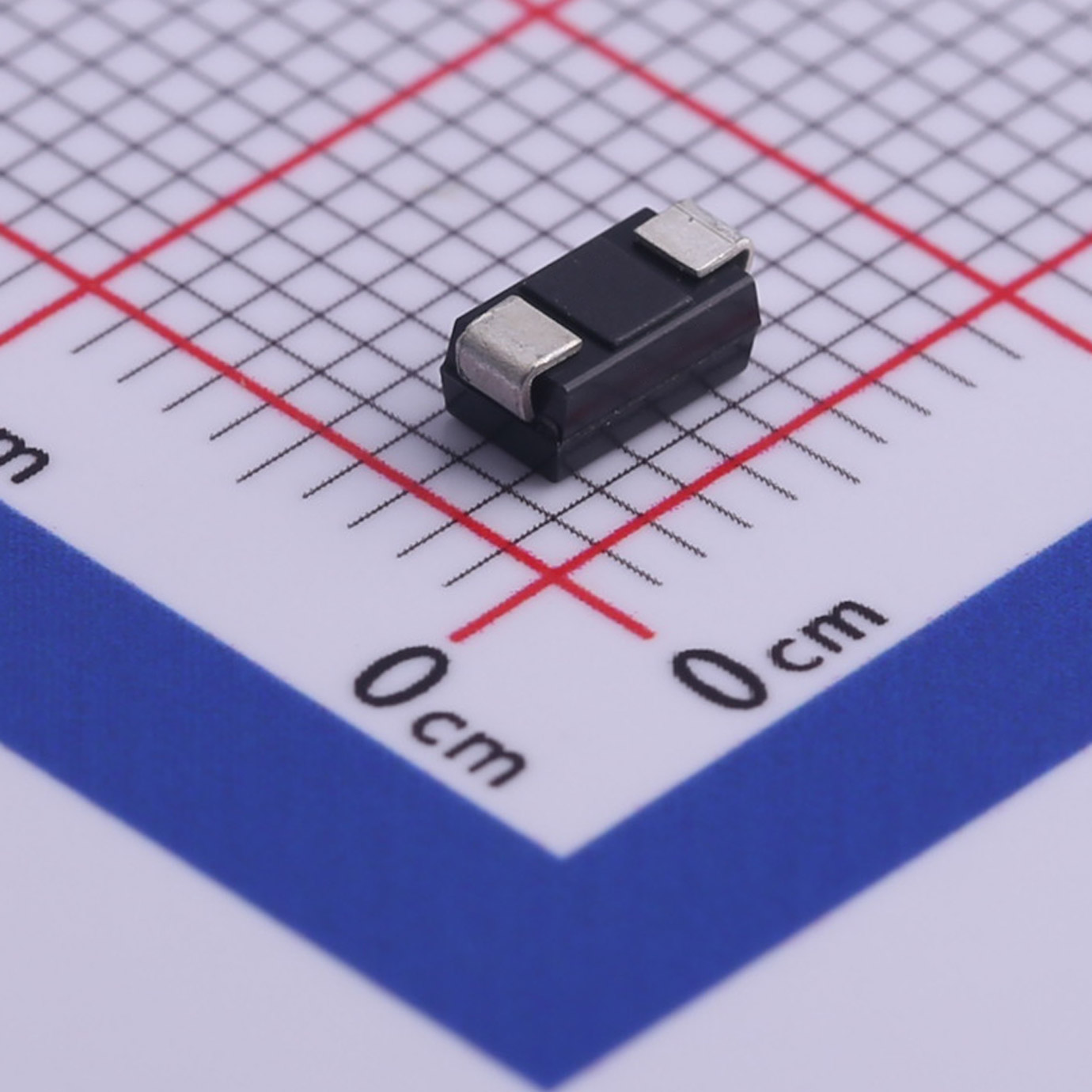

Case: Molded plastic

Terminals: Pure tin plated,lead free.

Polarity: Indicated by cathode band

Packaging: 12mm tape per EIA STD RS-481
