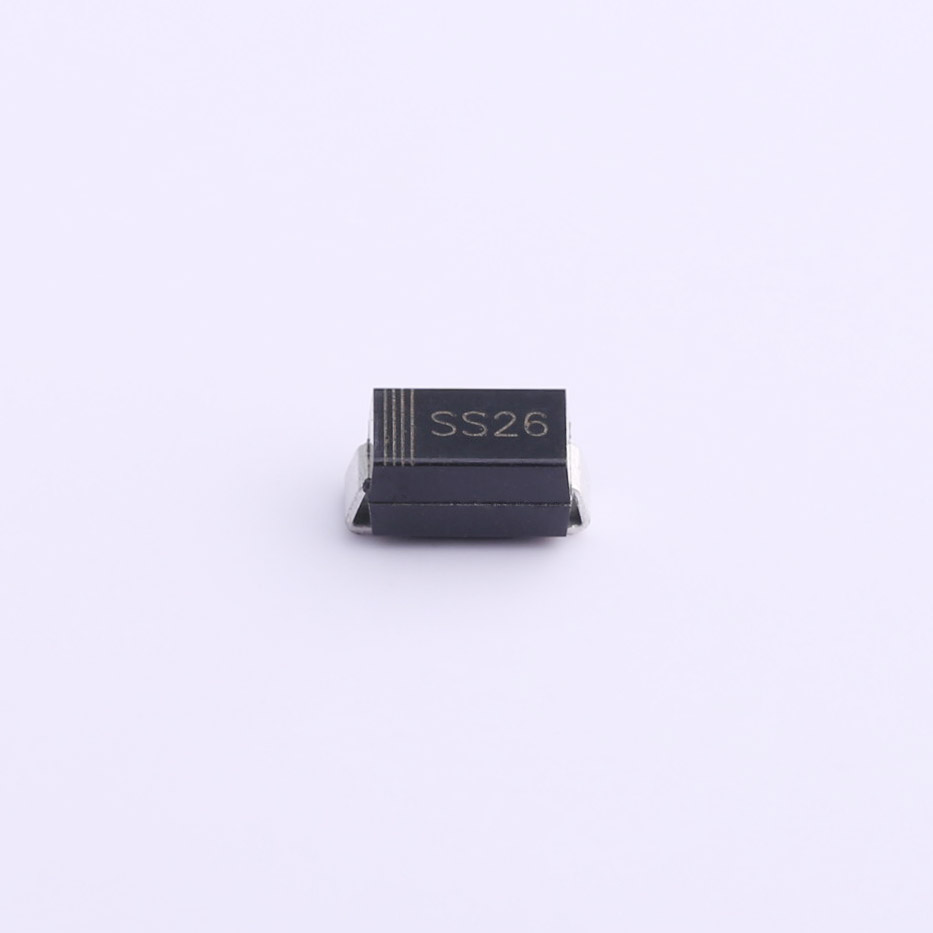

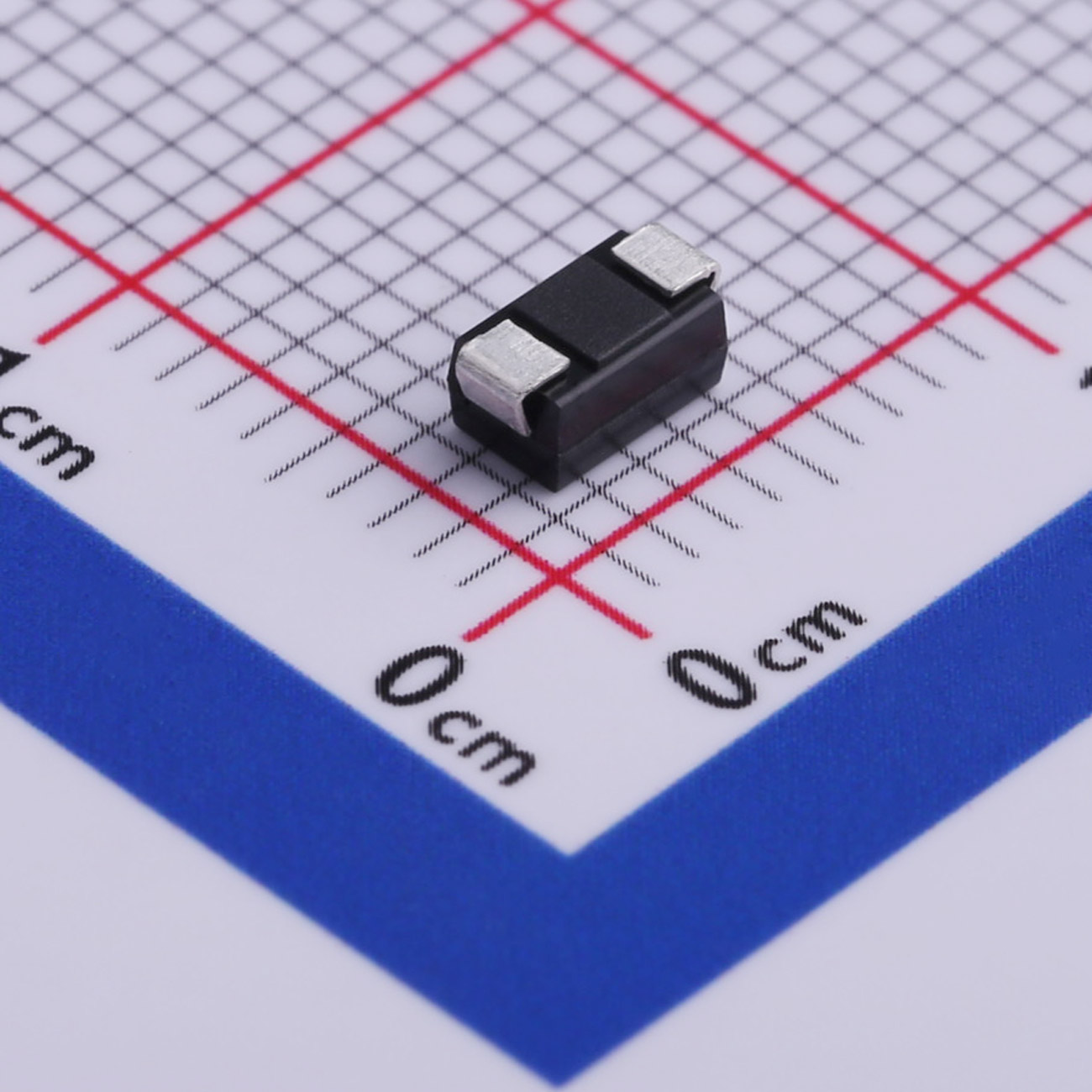

Surface Mount Schottky Rectifiers

 Features

• For surface mounted application.

• Easy pick and plaoe.

• Metal to silicon rectifier,majority carrier conduction.

• Low power loss, high efficiency.

• High current capability.low VF.

• High surge current capabilty.

• Plastic material used camriers Underwriters.

• Laboratory Classification 94V-0.

• Epitaxial construction.

• High temperature soldering: 260C/10 seconds at temminals.

Mechanical Data

• Case: Molded plastic.

• Terminals: Pure tin plated,lead free.

• Polarity: Indicated by cathode band.

• Packaging: 12mm tape per EIA STD RS-48.
