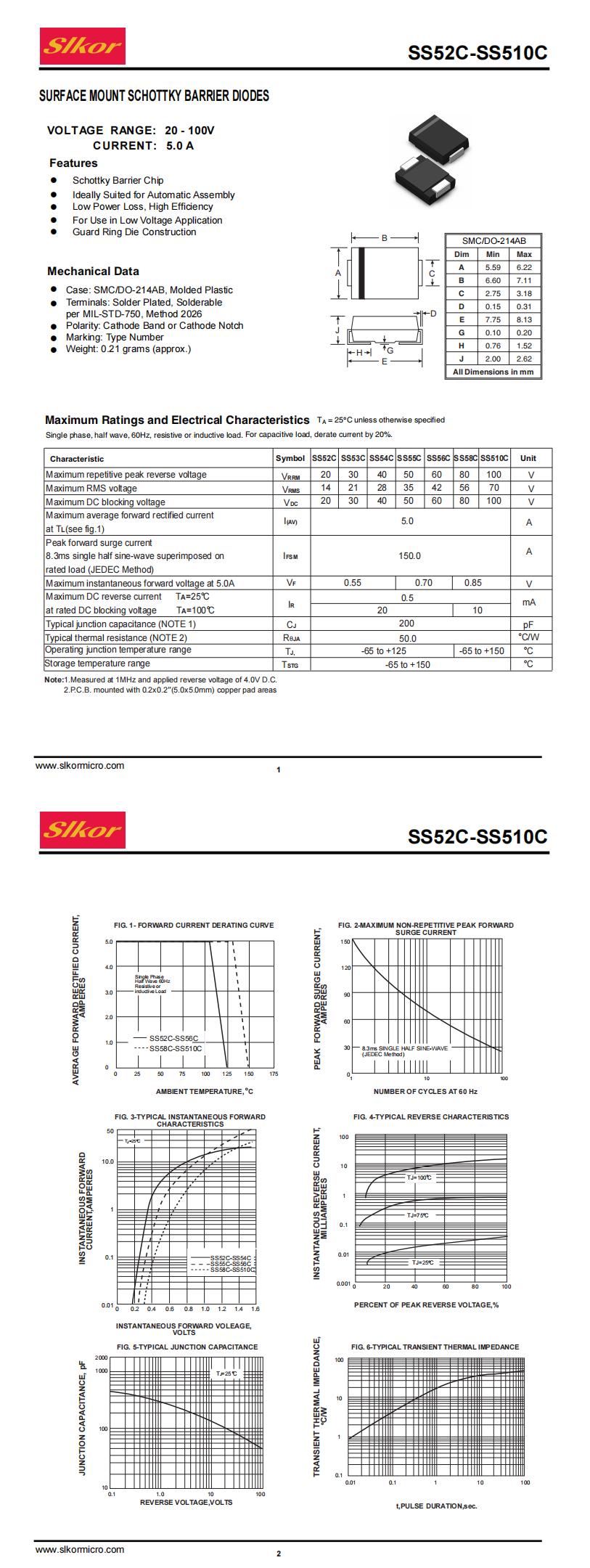

SURFACE MOUNT SCHOTTKY BARRIER DIODES

VOLTAGE RANGE: 20-100V

CURRENT: 5.0 A

Features

• Schottky Barrier Chip

• Ideally Suited for Automatic Assembly

• Low Power Loss,High Efficiency

• For Use in Low Voltage Application

• Guard Ring Die Construction

Mechanical Data

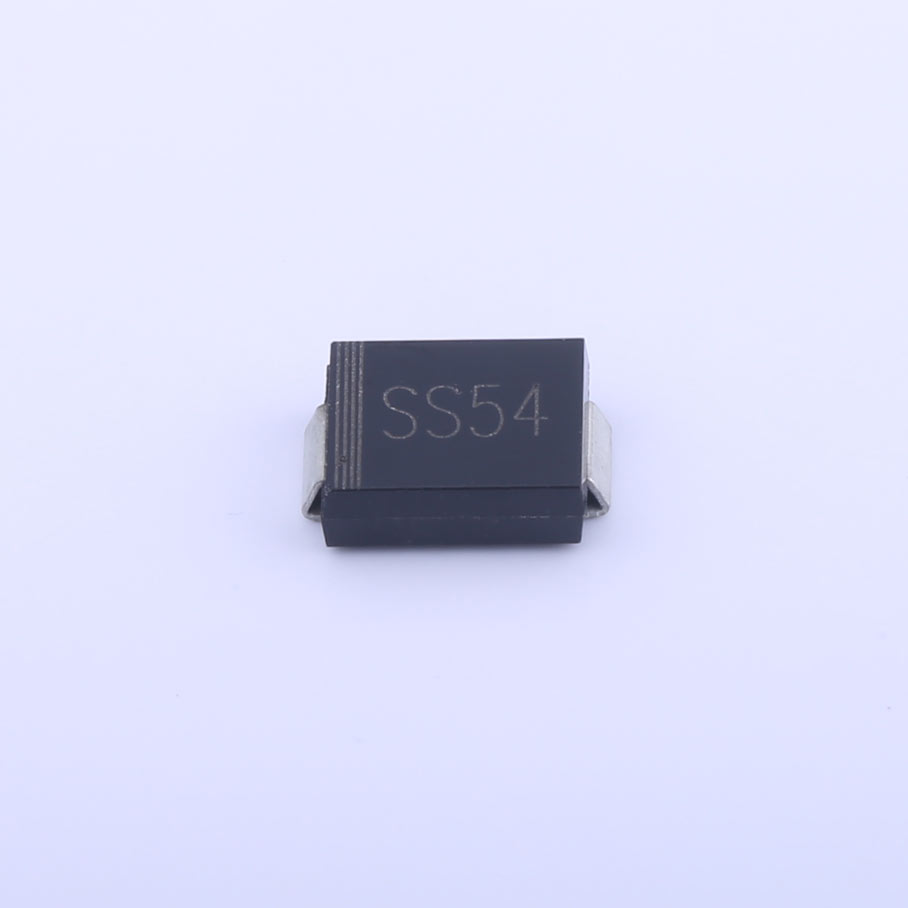

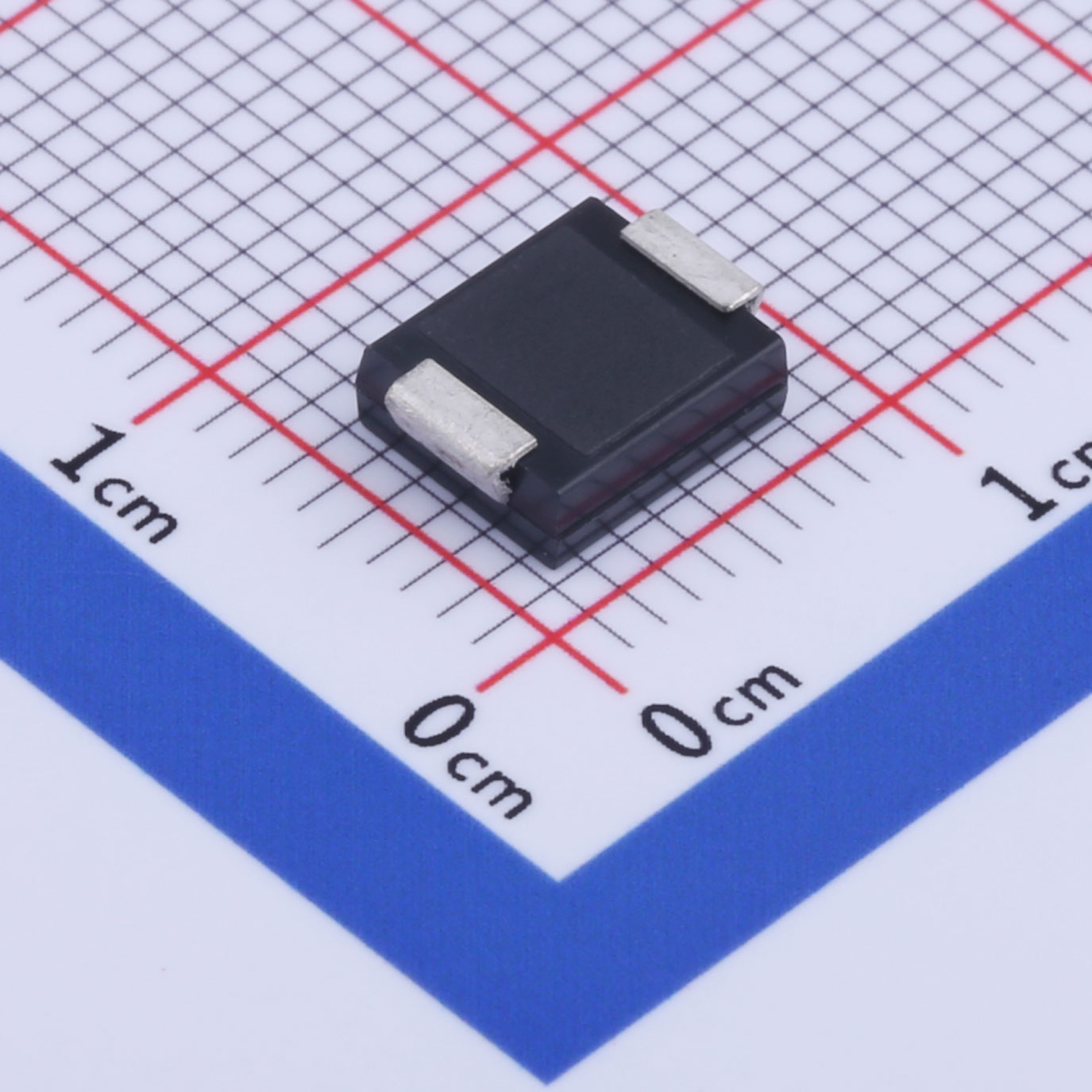

• Case: SMC/DO-214AB,Molded Plastic

• Terminals:Solder Plated,Solderable per MIL-STD-750.Method 2026

• Polarity: Cathode Band or Cathode Notch

• Marking: Type Number

• Weight: 0.21 grams (approx.)
