Features

● IEC 61000-4-2±15Vcontact±15kVair

● IEC 61000-4-4(EFT)40A(5/50ns)
● IEC 61000-4-5(Lightning)3.5A(8/20μs)

● 60Watts peak pulse power(tp=8/20μs)

● Solid-statesilicon-avalanche technology
● Protection two datalines

● Low clamping voltage
● Low leakage current
● Low Low capacitance(Cj=0.7pFtyp.)
● Bidirectional and unidirectional configurations

Mechanical Data

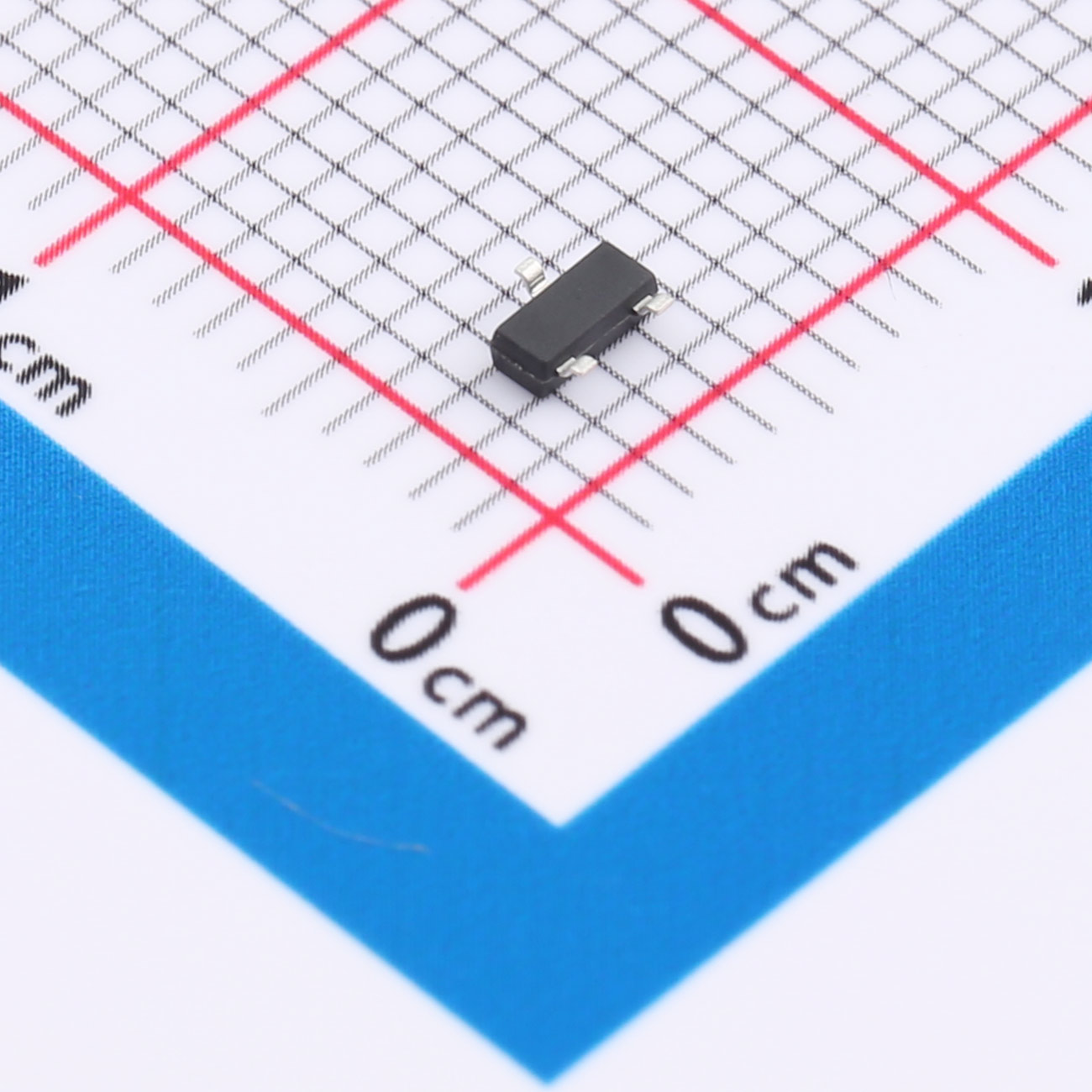

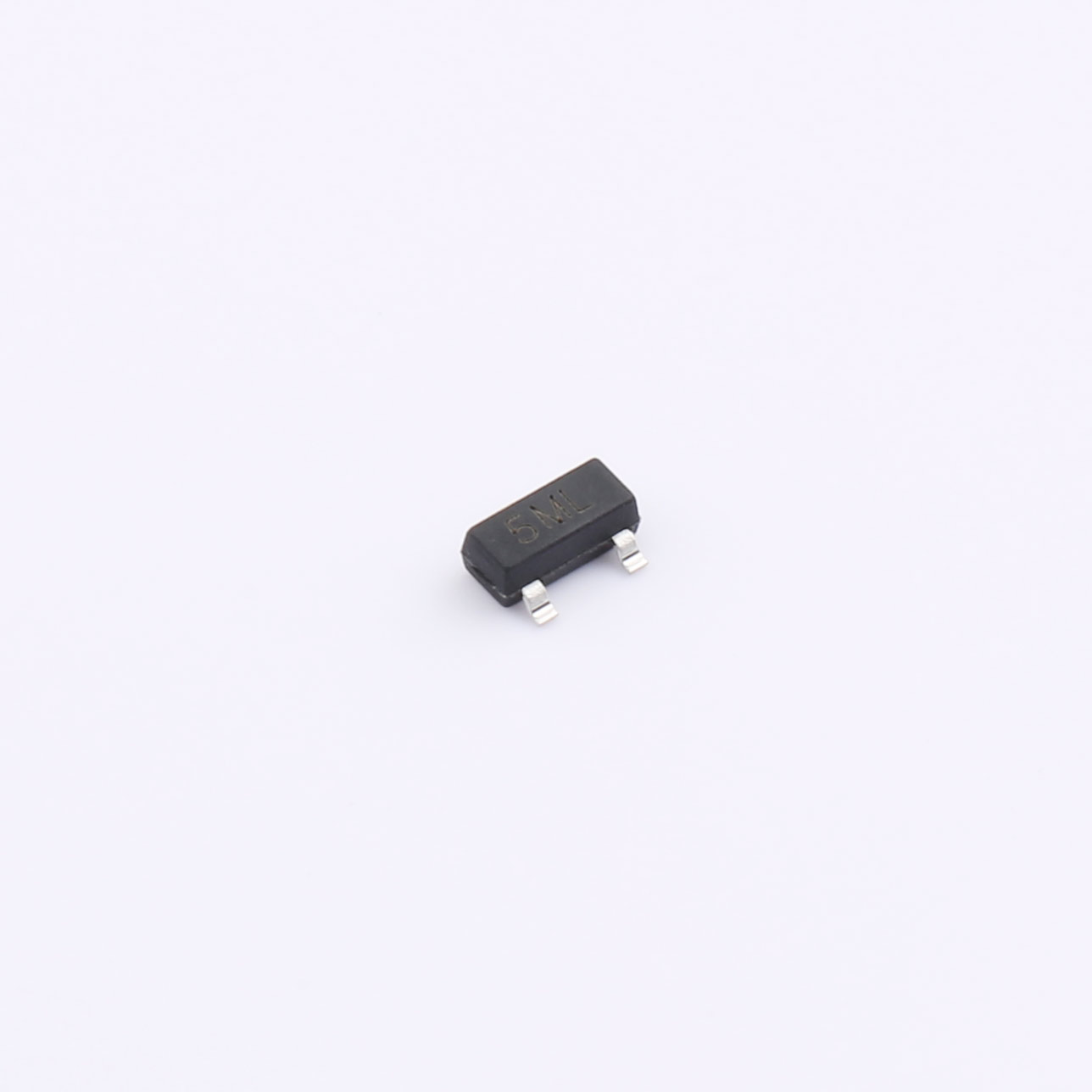

● SOT-23 package
● Flammability Rating: UL 94V-0
● Packaging: Tape and Reel
● RoHS/WEEE Compliant

Applications

● Dataline
● Automatic Teller Machines
● Networks
● Powerline
