Description
The SLESD5Z36 is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low  leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Features

● IEC61000-4-2 Level 4 ESD Protection

● Protects one directional I/O line

● Low clamping voltage

● Working voltages : 36V

● Low leakage current

Mechanical Data

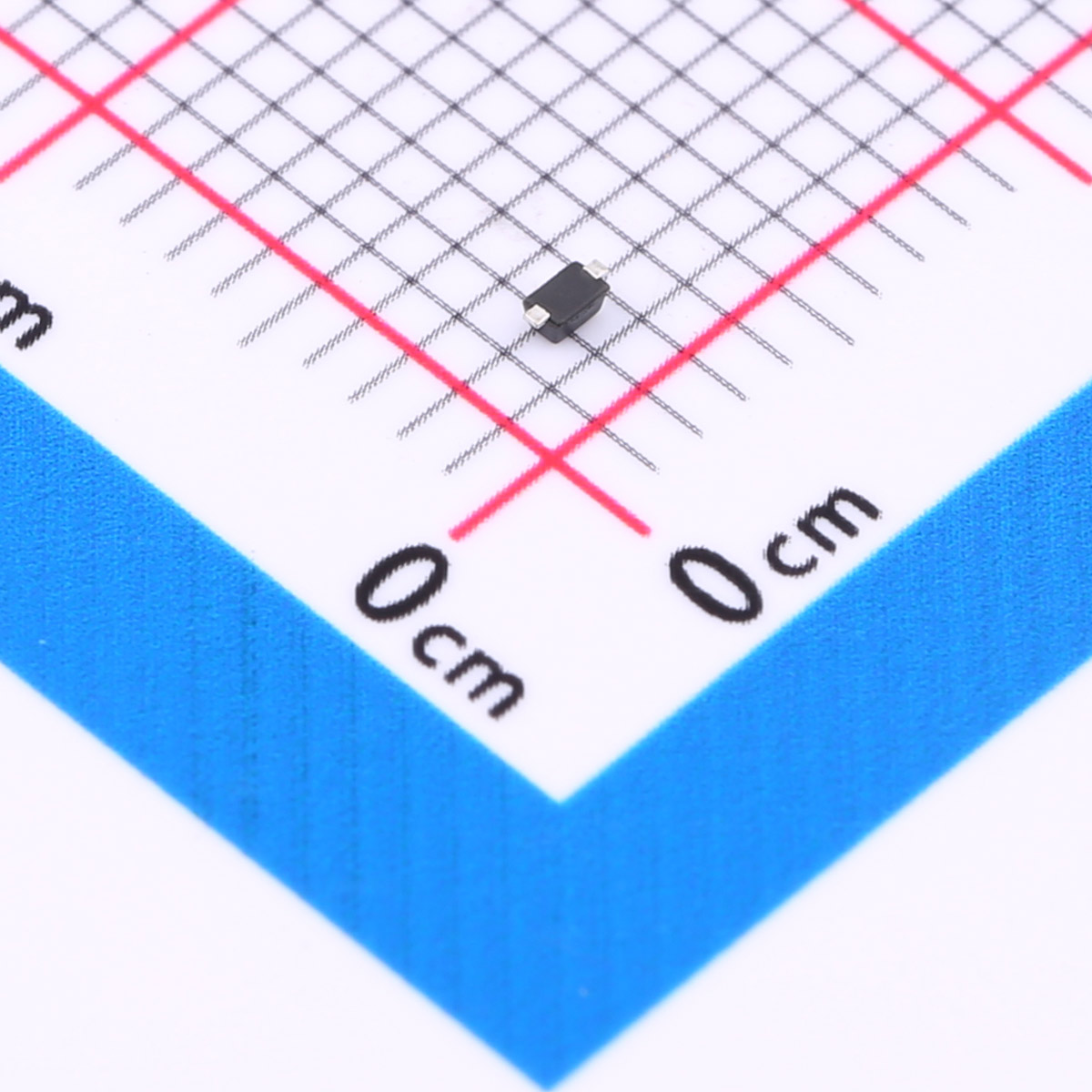

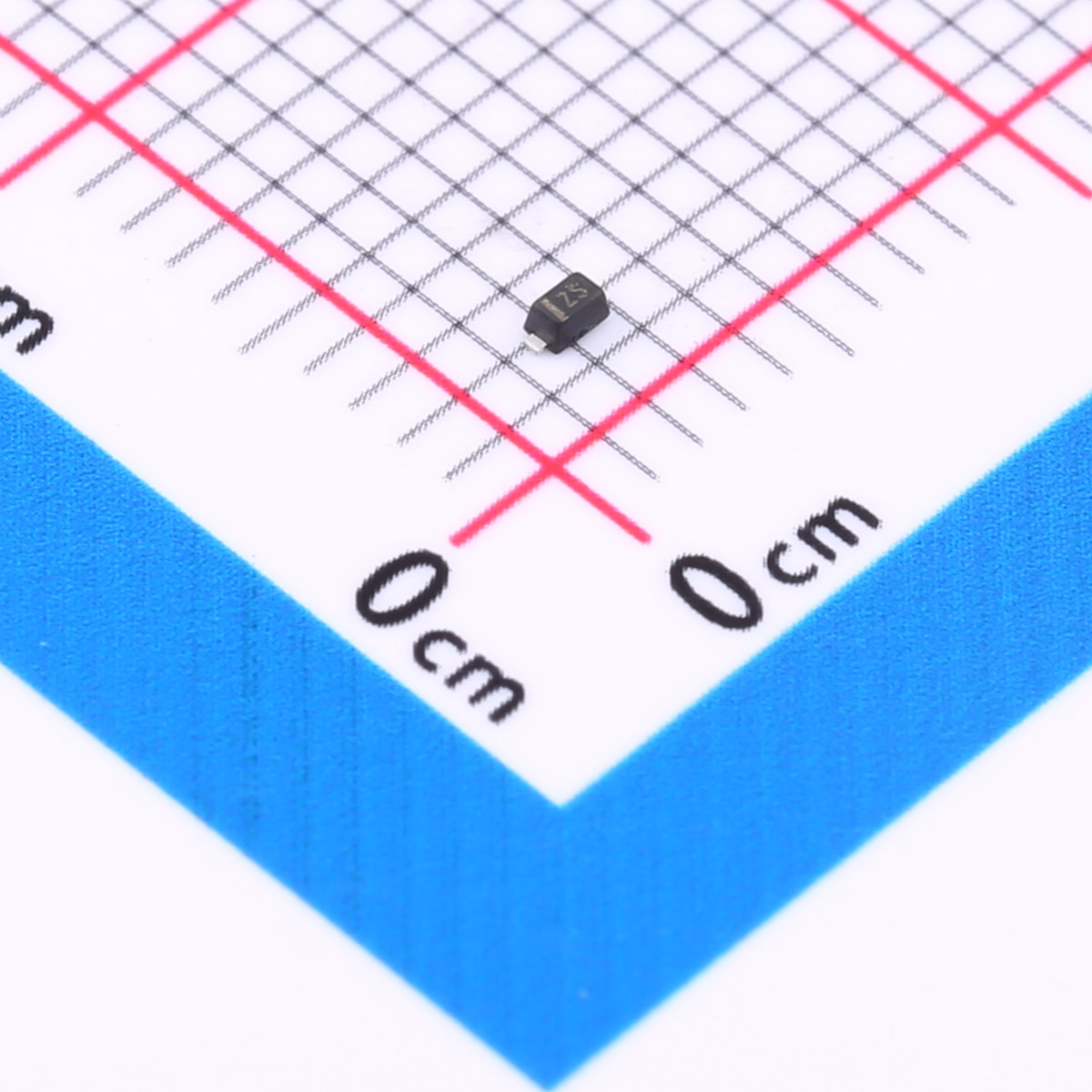

● SOD-523 package
● Flammability Rating: UL 94V-0
● High temperature soldering guaranteed:260℃/10s
● Packaging: Tape and Reel
● Reel size: 7 inch

Ordering Information

● Device:  SLESD5Z36
● Package: SOD-523

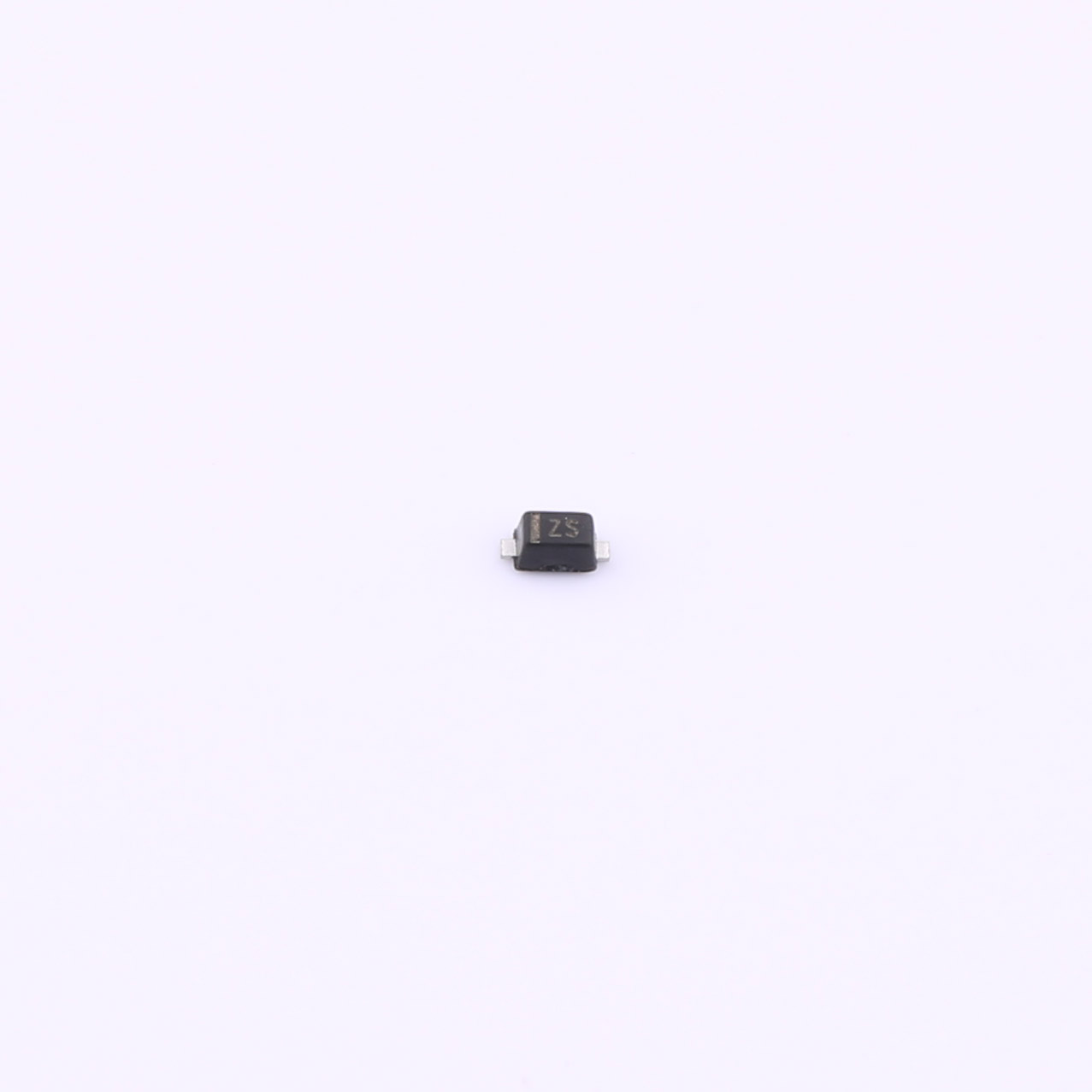

● Marking:ZS
● Material: Halogen free
● Packing: Tape & Reel
● Quantity per reel: 3,000pcs

Applications

● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Peripherals
● LED backlight
