Description
The SLPESD3V3S1BA-N is designed to protect voltage sensitive components from ESD and transient  voltage events. Excellent clamping capability, low  leakage, and fast response time, make these parts  ideal for ESD protection on designs where board  space is at a premium.   This device has been specifically designed to  protect sensitive components which are connected  to data and transmission lines from overvoltage  caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Features

● IEC61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact)

● IEC61000-4-4 (EFT) 40A (5/50ηs)

● Peak power dissipation: 60W (8/20μs)

● Protects one I/O line

● Low clamping voltage
● Working voltages : 3.3V
● Low leakage current

Mechanical Data

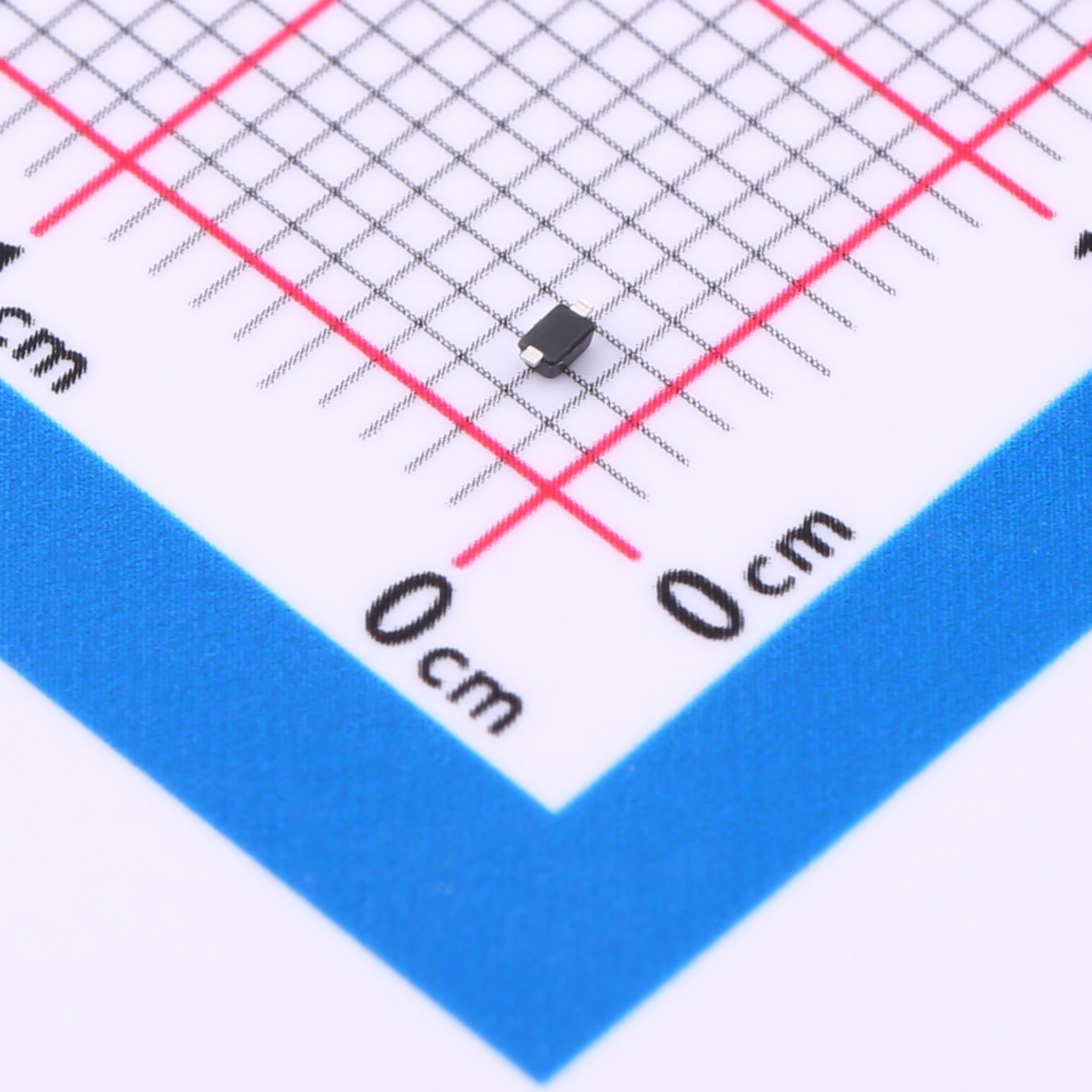

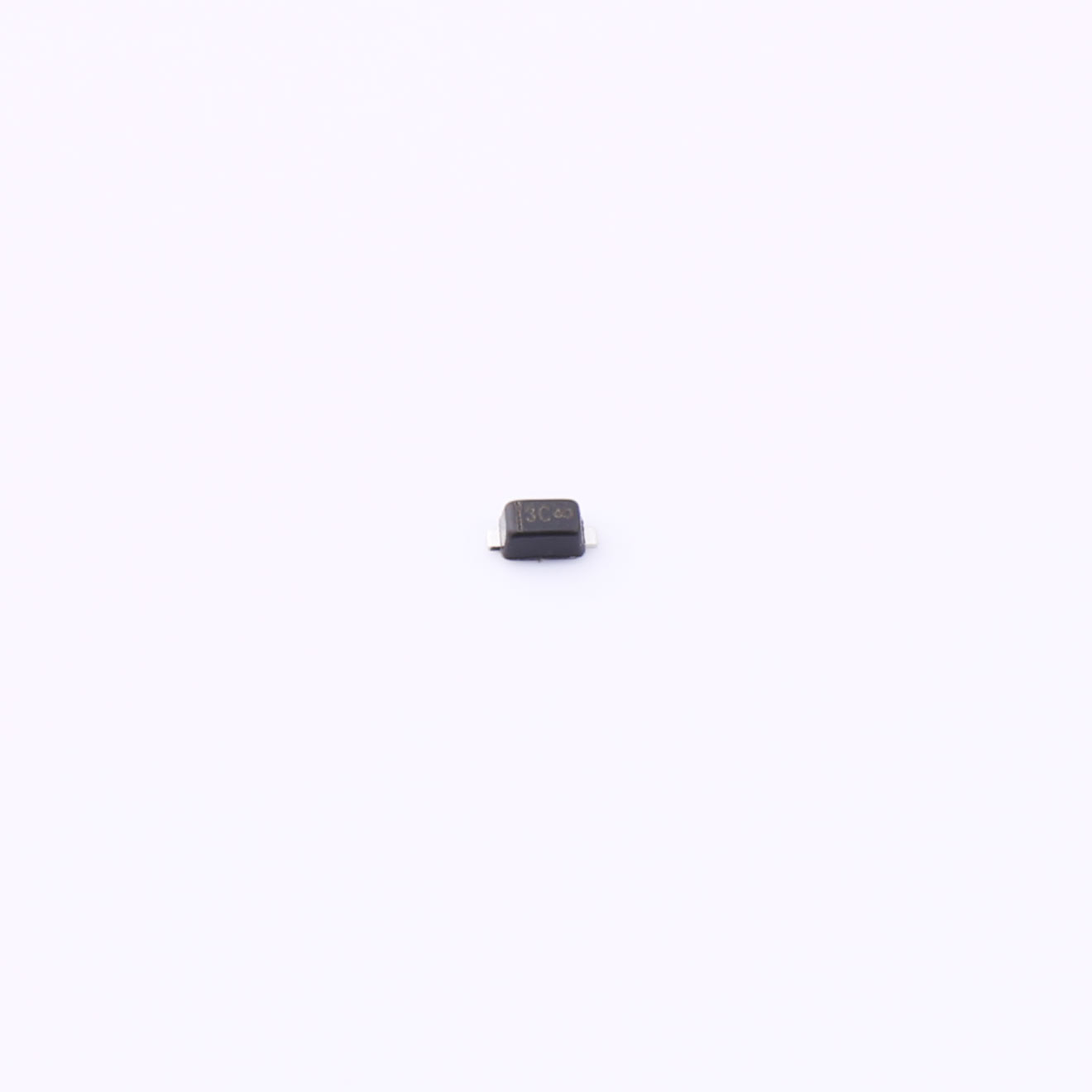

● SOD-523 package
● Flammability Rating: UL 94V-0
● High temperature soldering guaranteed:260℃/10s
● Packaging: Tape and Reel
● Reel size: 7 inch
● MSL1

Ordering Information

● Device:  SLPESD3V3S1BA-N
● Package: SOD-523
● Material: Halogen free
● Packing: Tape & Reel
● Quantity per reel: 3,000pcs

Applications

● Cell Phone Handsets andAccessories
● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Networking and Telecom
● Serial and Parallel Ports
● Peripherals
