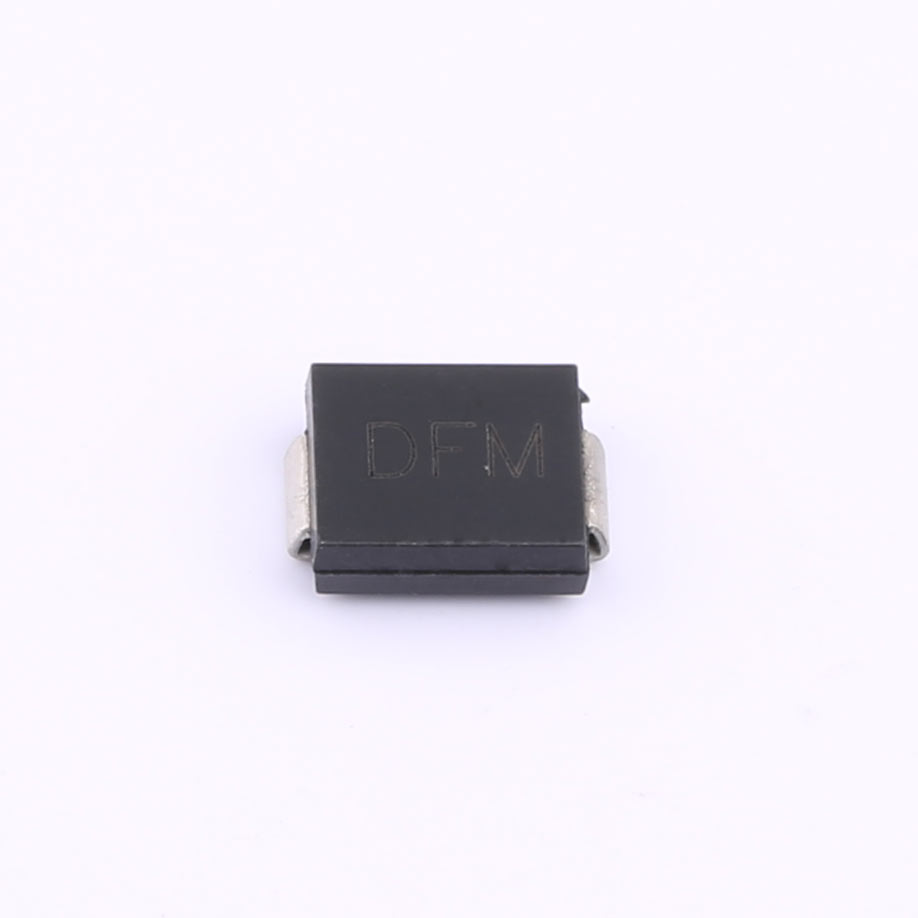

The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced  by lightning and other transient voltage  events.

Features

● Halogen-Free

● RoHS compliant

● For surface mounted applications  in order to optimize board space

● Low profile package

● Built-in strain relief

● Typical maximum temperature  coefficient ΔVBR = 0.1% × VBR@25℃ × ΔT

● Glass passivated chip junction

● 3000W peak pulse power capability  at lOxlOOOUs waveform, repetition  rate {duty cycles):0.01 %

● Fast response time:typically less   than l.Ops from OV to BV min

● Excellent clamping capability

● Low incremental surge resistance

● Typical IR less than 2UA above 12V

● High Temperature soldering    guaranteed: 260℃/40 seconds   at terminals

● Plastic package has Underwriters   Laboratory Flammability 94V-O

● Matte Tin Lead-free Plated

Mechanical Data

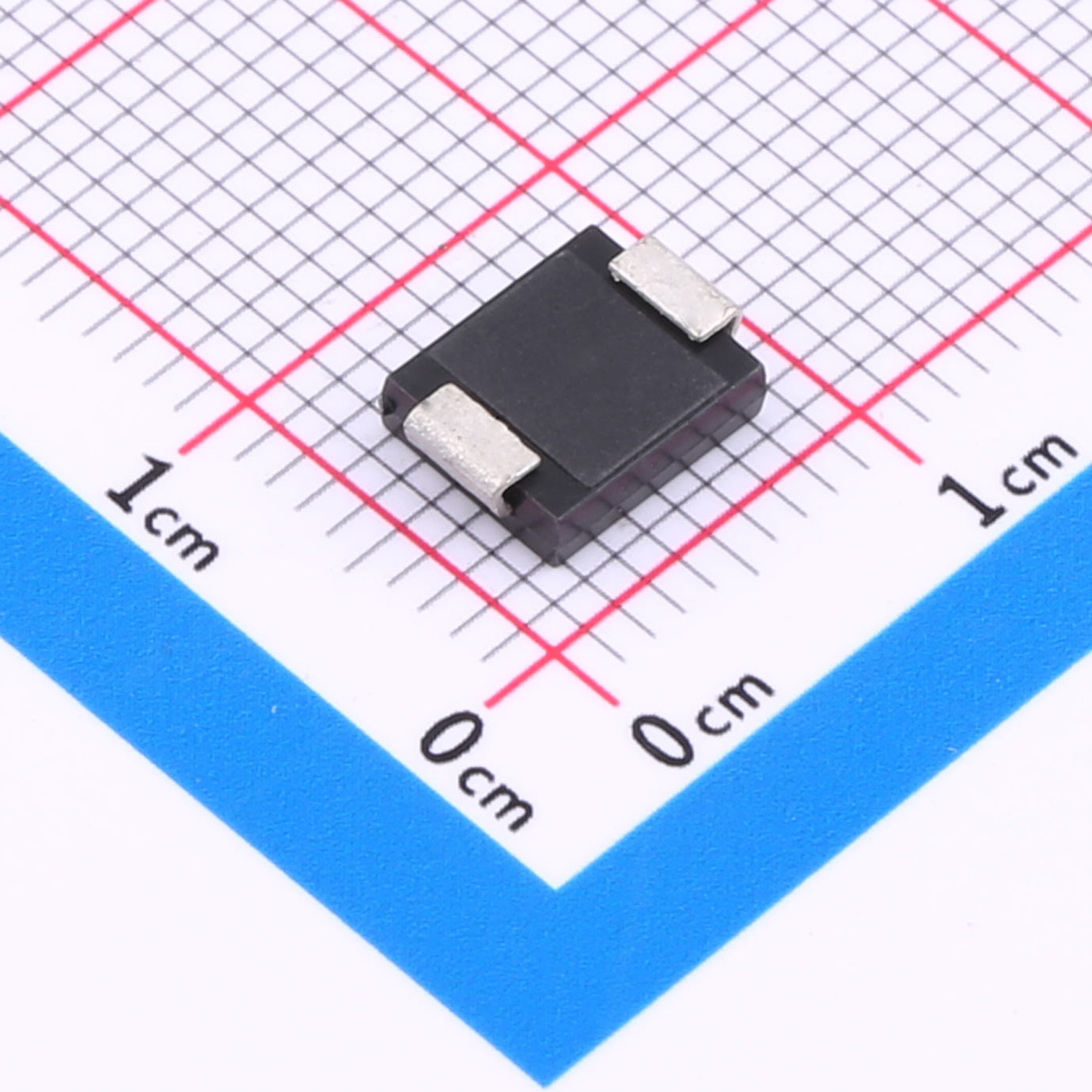

● Case: SMC
● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight:  0.22g / 0.0077oz
