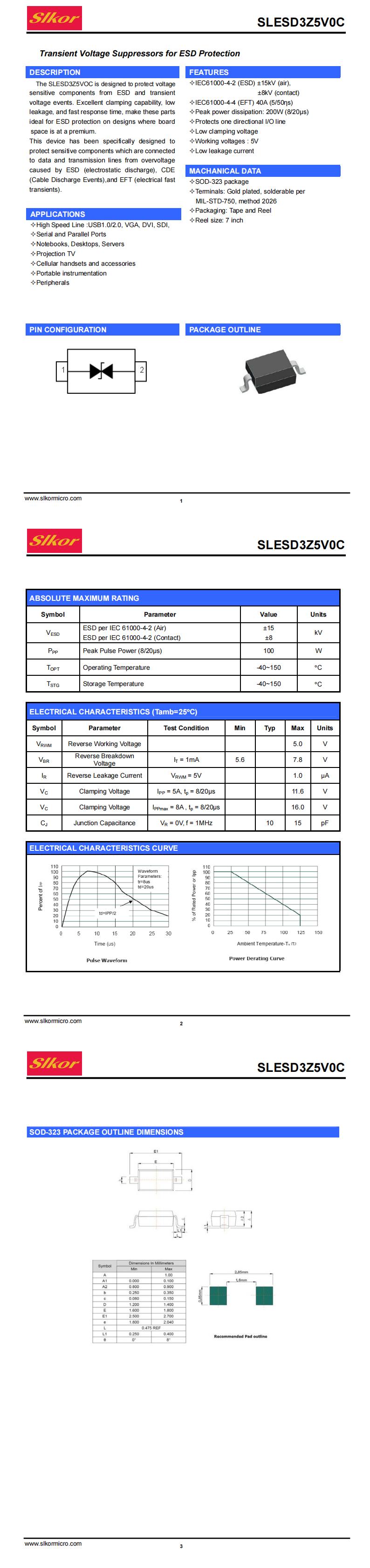

DESCRIPTION

The SLESD3Z5VOC is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts

ideal for ESD protection on designs where board space is at a premium.

This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).

FEATURES
IEC61000-4-2 (ESD) ±15kV (air),

±8kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)

Peak power dissipation: 200W (8/20μs)

Protects one directional I/O line

Low clamping voltage

Working voltages : 5V
Low leakage current

APPLICATIONS

High Speed Line :USB1.0/2.0, VGA, DVI, SDI,

Serial and Parallel Ports

Notebooks, Desktops, Servers

Projection TV

Cellular handsets and accessories

Portable instrumentation

Peripherals

MACHANICAL DATA

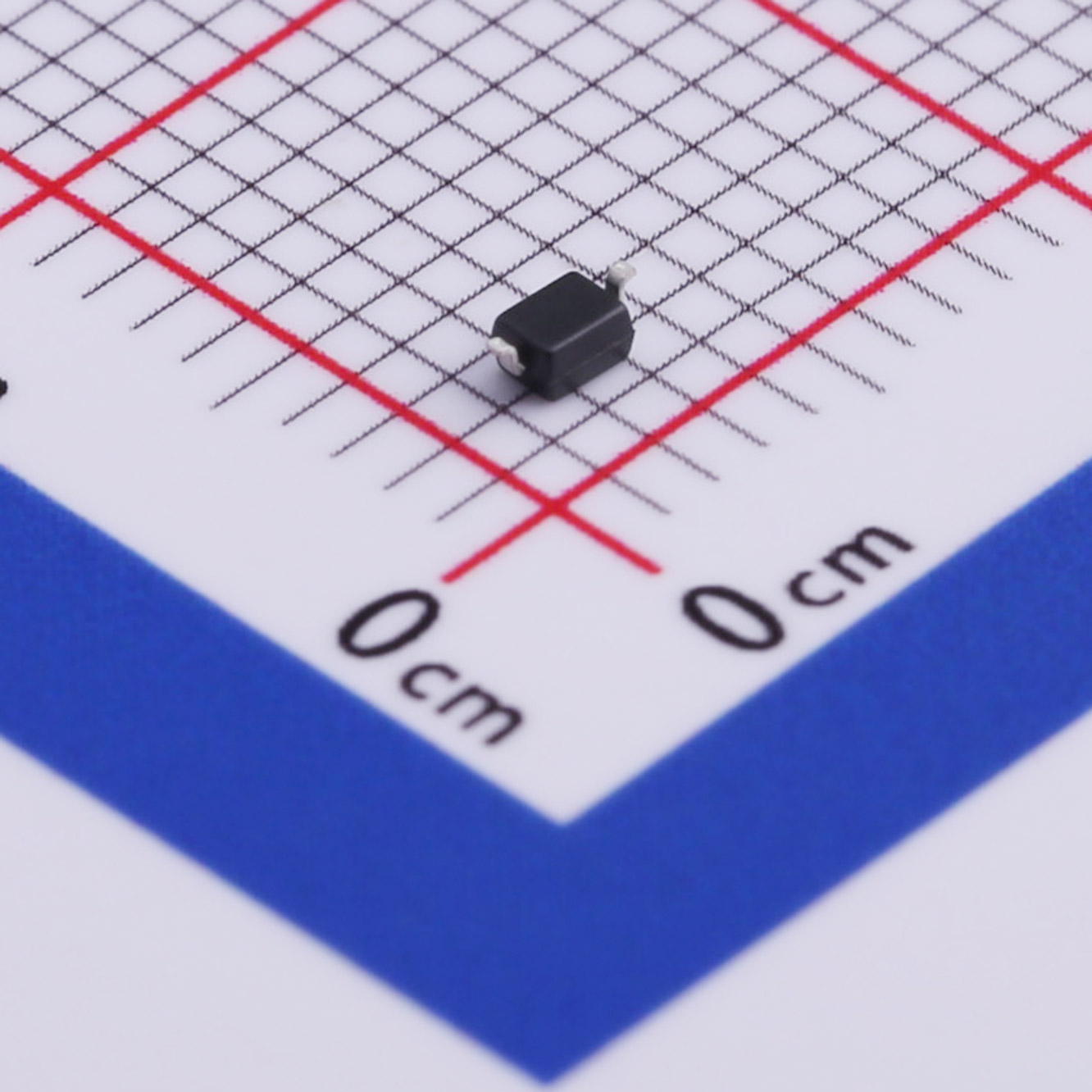

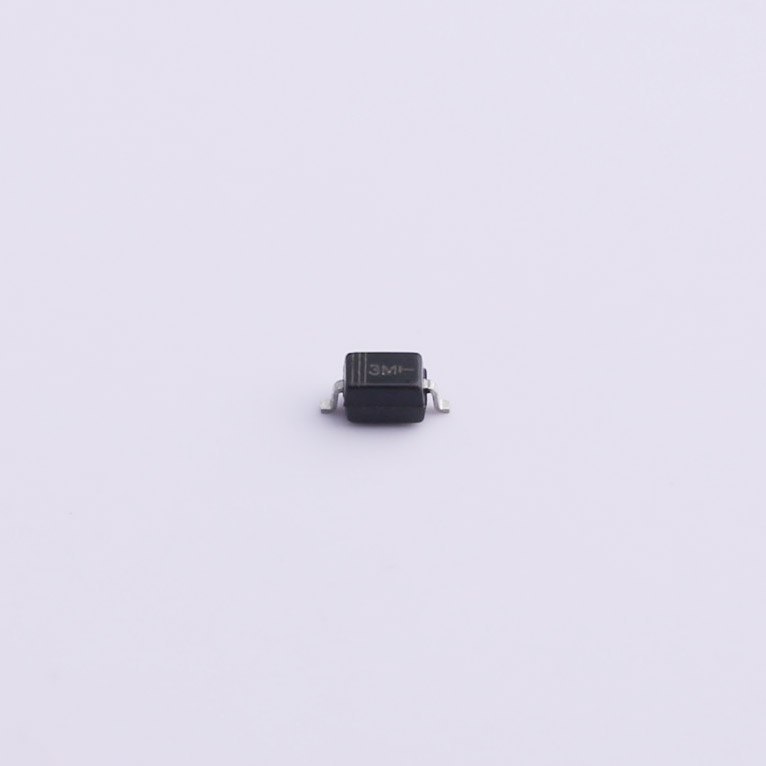

SOD-323 package

Terminals: Gold plated, solderable per MIL-STD-750, method 2026

Packaging: Tape and Reel

Reel size: 7 inch
