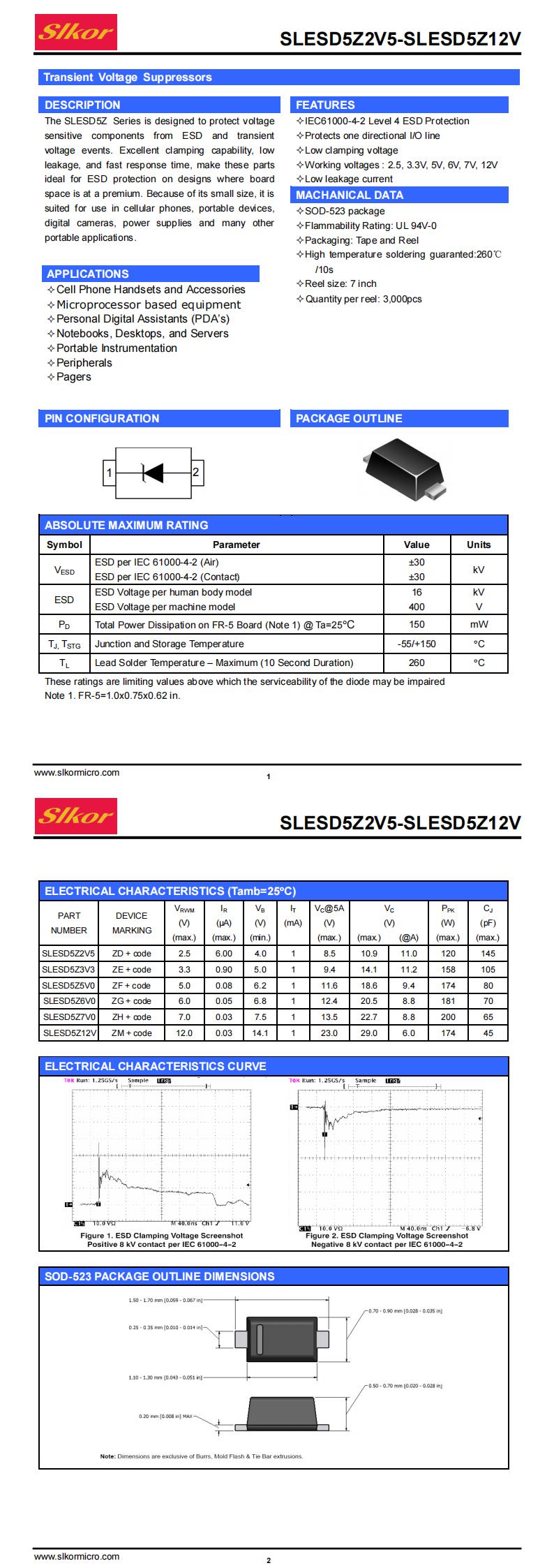

DESCRIPTION
The SLESD5Z Series is designed to protect voltage  sensitive components from ESD and transient  voltage events. Excellent clamping capability, low  leakage, and fast response time, make these parts  ideal for ESD protection on designs where board  space is at a premium. Because of its small size, it is  suited for use in cellular phones, portable devices,  digital cameras, power supplies and many other  portable applications.

FEATURES
● IEC61000-4-2 Level 4 ESD Protection
● Protects one directional I/O line
● Low clamping voltage
● Working voltages : 2.5, 3.3V, 5V, 6V, 7V, 12V
● Low leakage current

APPLICATIONS
● Cell Phone Handsets and Accessories
● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Peripherals
● Pagers

MACHANICAL DATA

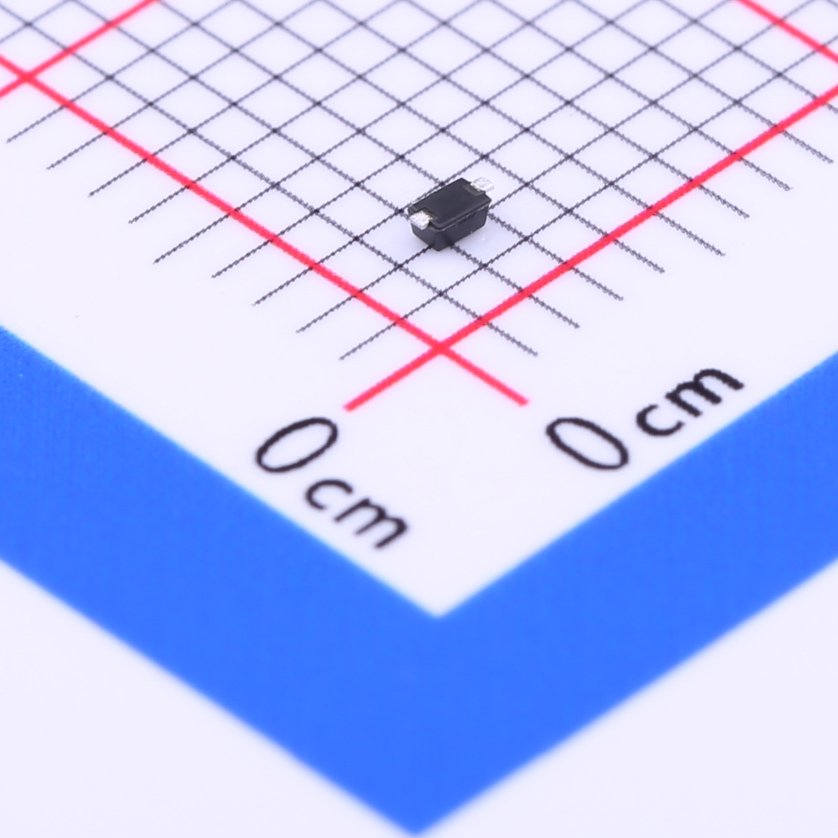

● SOD-523 package
● Flammability Rating: UL 94V-0
● Packaging: Tape and Reel
● High temperature soldering guaranted:260℃ /10s
● Reel size: 7 inch
● Quantity per reel: 3,000pcs
