Description

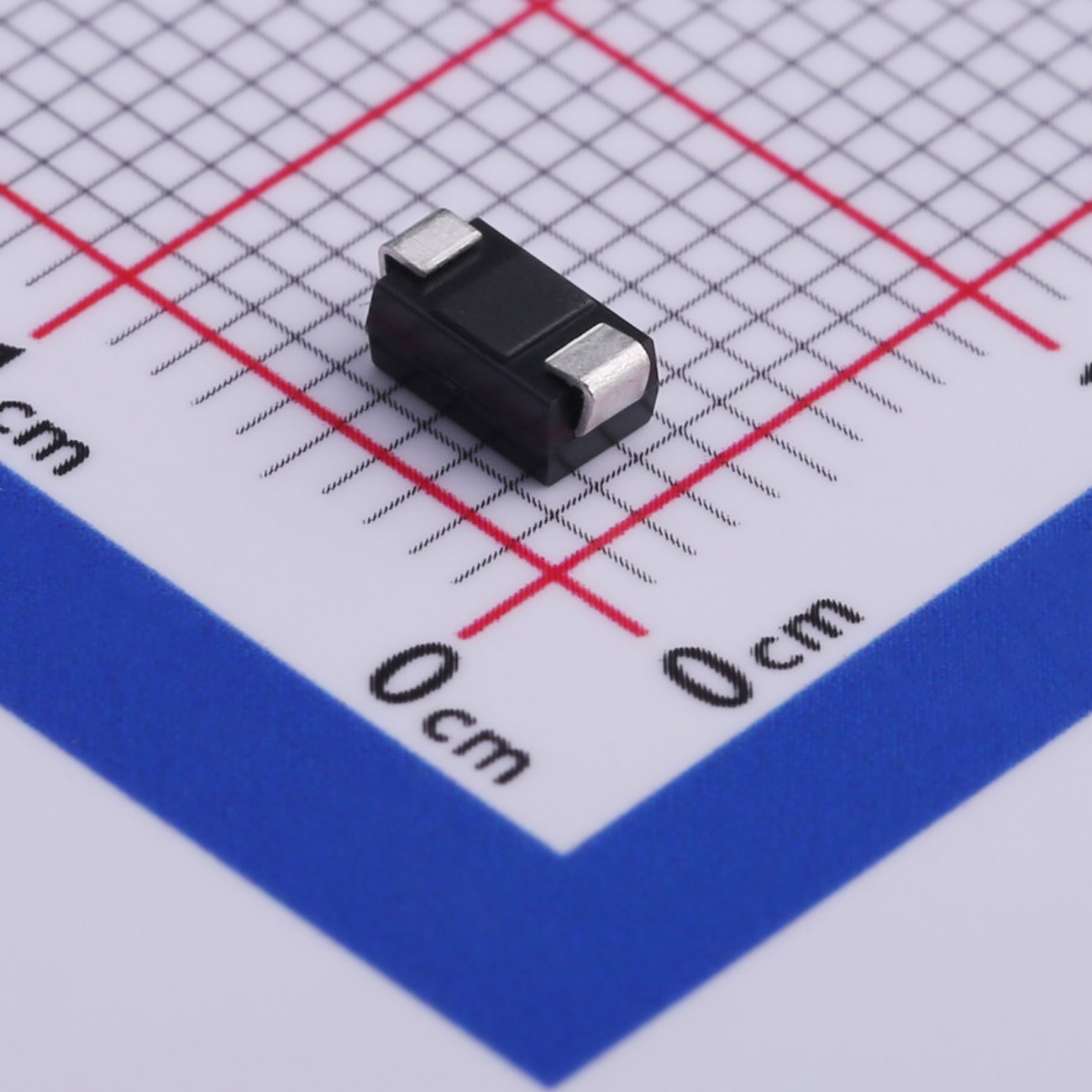

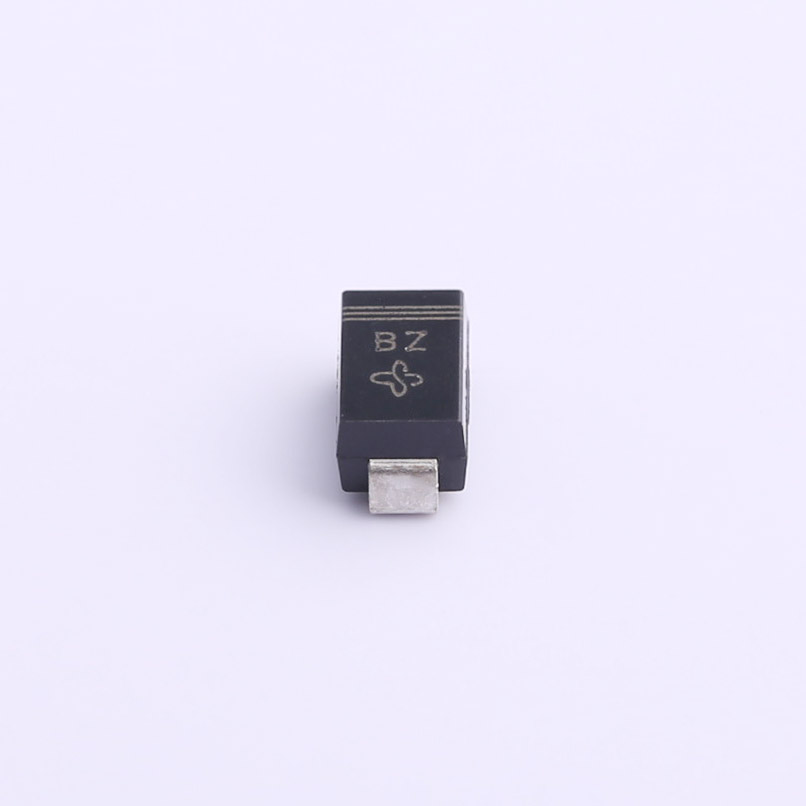

The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is a specialized component designed to protect sensitive electronic circuits from transient voltage events in one direction. With a working peak reverse voltage (Vrwm) of 24V, this diode provides robust protection against voltage spikes, ensuring the reliability and longevity of electronic systems.

Features

● UL Recognized File # E-326243

● For surface mounted application

● Low profile package

● Built-in strain relief

● Glass passivated junction

● Excellent clamping capability

● Fast response time: Typically less than 1.0ps from 0 volt to BV min

● Typical IR less than 1uA above 10V

● High temperature soldering guaranteed: 260℃ / 10 seconds at terminals

● Plastic material used carried Underwriters Laboratory Flammability Classification 94V-0

● 400 watts peak pulse power capability with a 10 / 1000 us waveform (300W above 78V)

Applications

● Telecommunication Systems
● Consumer Electronics
● Industrial Equipment
● Automotive Electronics
● Power Supplies
