Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description
The Polar TVS Diode is a high-performance semiconductor device engineered to protect sensitive electronics from transient voltage events and surges. With a VRWM (Working Peak Reverse Voltage) of 24V, this diode offers reliable protection within specified voltage limits. It features a VBR (Breakdown Voltage) ranging from 26.7V to 29.5V, which determines when the diode conducts to clamp excessive voltages. The diode also boasts a low reverse leakage current (Ir) of 5mA and a clamping voltage (VC) of 9.2V, ensuring minimal power dissipation and efficient suppression of voltage spikes.

Features

● Glass Passivated Die Construction

● Uni- and Bi-Directional Versions Available

● Excellent Clamping Capability

● Fast Response Time

Mechanical Data

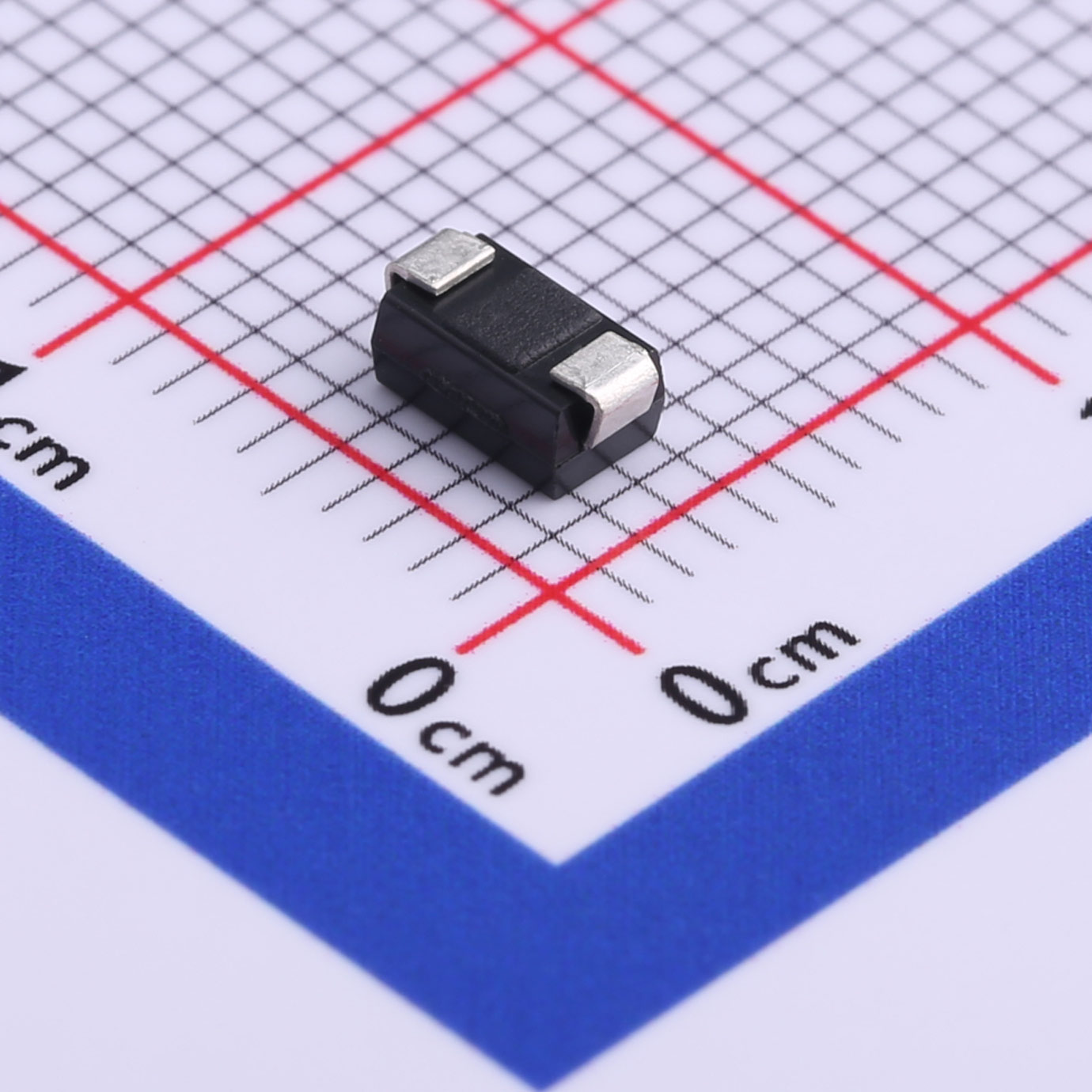

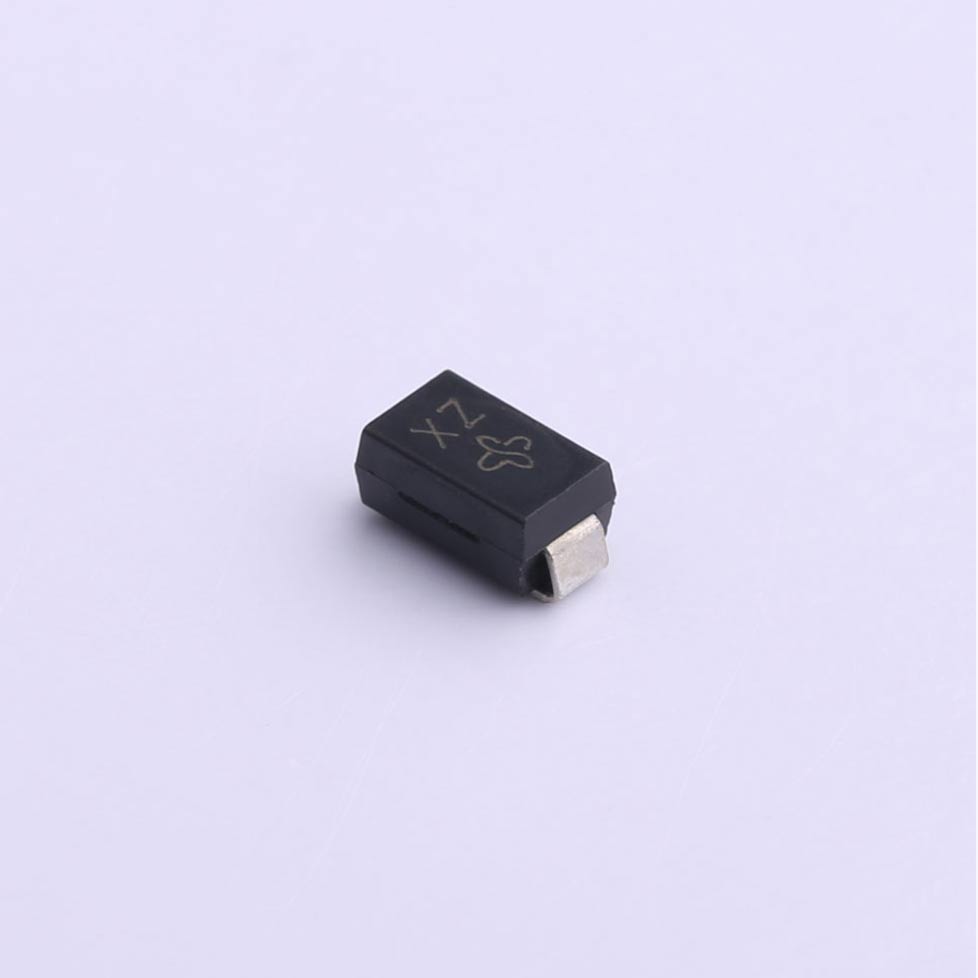

● Case : JEDEC SMA(DO-214AC), Transfer Molded Epoxy

● Terminals : Solder Plated, Solderable per MIL-STD-750, Method 2026

● Polarity : Cathode Band Except Bi-Directional

Applications

● Consumer Electronics
● Computing and Networking
● Industrial Applications
● Automotive Electronics
