Description

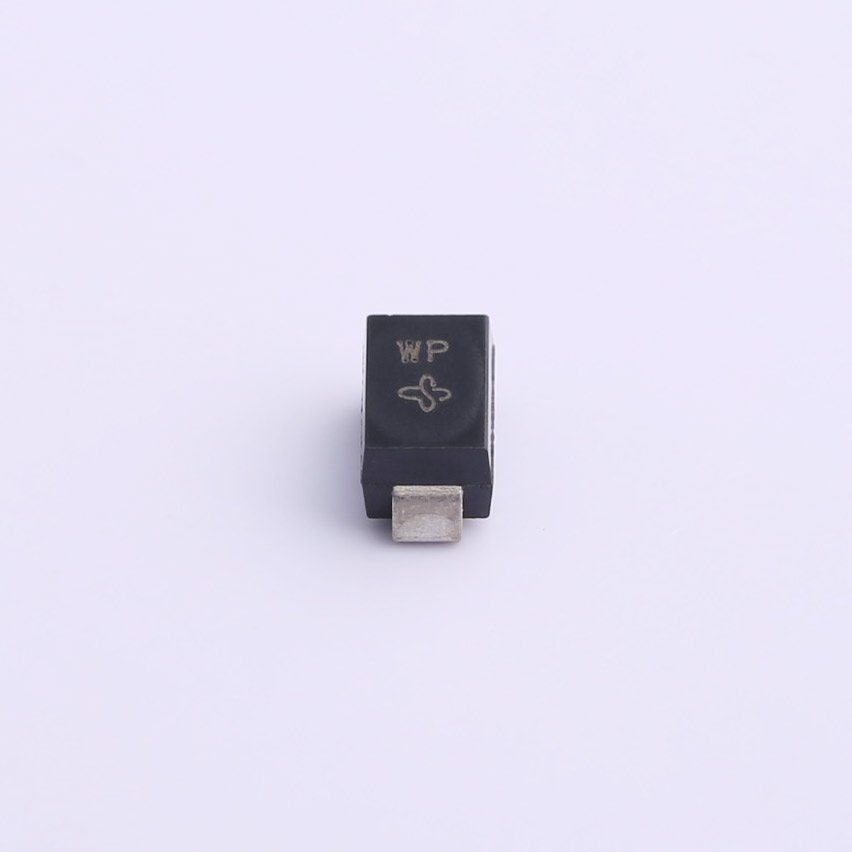

The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a compact and efficient device designed to protect sensitive electronic circuits from transient voltage events in both directions. With a working peak reverse voltage (Vrwm) of 7.5V, this diode provides robust protection against voltage spikes, ensuring the reliability and longevity of electronic systems.

FEATURES

● Glass Passivated Die Construction

● Uni-and Bi-Directional Versions Available

● Excellent Clamping Capability

● Fast Response Time

● Plastic Case Material has UL Flammability

● Classification Rating 94V-O

MECHANICAL DATA

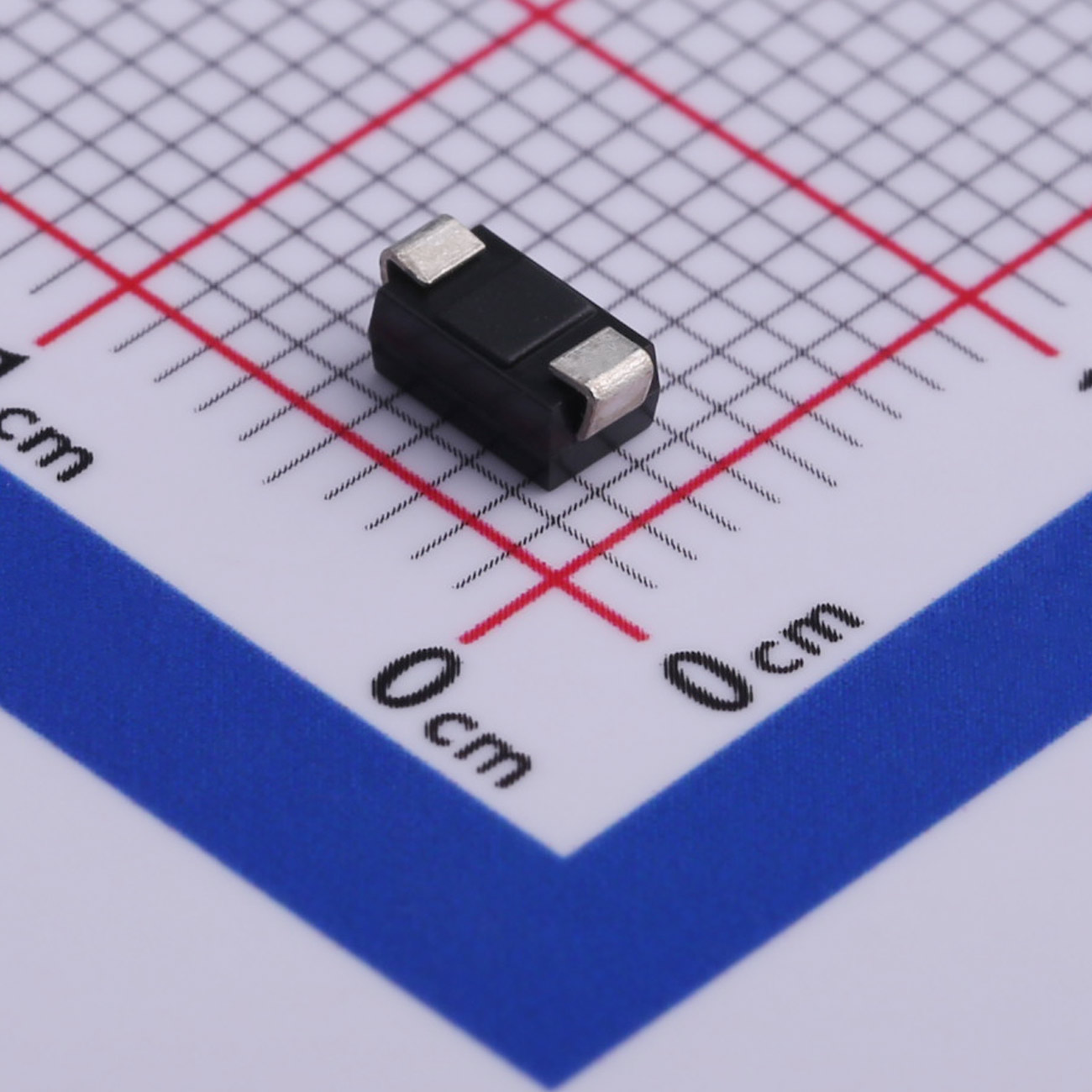

● Case: JEDEC SMA(DO-214AC), Transfer Molded Epoxy

● Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026

● Polarity Cathode Band Except Bi-Directional

Applications

● Consumer Electronics
● Computer and Networking Equipment
● Automotive Electronics
● Industrial Controls
● Telecommunication Systems
