Description

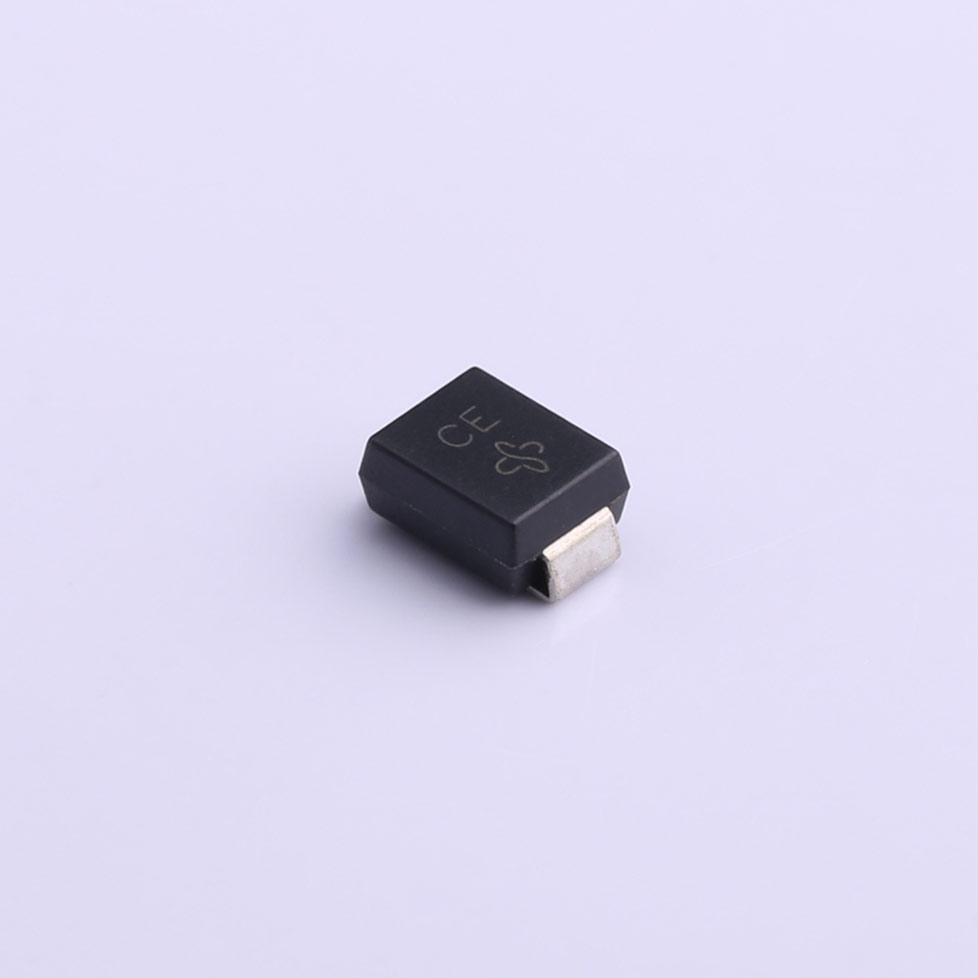

The Polar Bidirectional TVS Diode is a high-performance semiconductor device designed to safeguard sensitive electronic circuits from transient voltage spikes in both directions. Featuring a VRWM (Working Peak Reverse Voltage) of 26V, VBR (Breakdown Voltage) ranging from 28.9V to 33.2V, and a low reverse leakage current of 5μA, this diode ensures robust protection against voltage surges, enhancing the reliability and longevity of electronic systems.

Features

● Glass Passivated Die Construction

● Uni- and Bi-Directional Versions Available

● Excellent Clamping Capability

● East Response Time

● Plastic Material: UL Flammability Classification Rating 94V-0

Mechanical Data

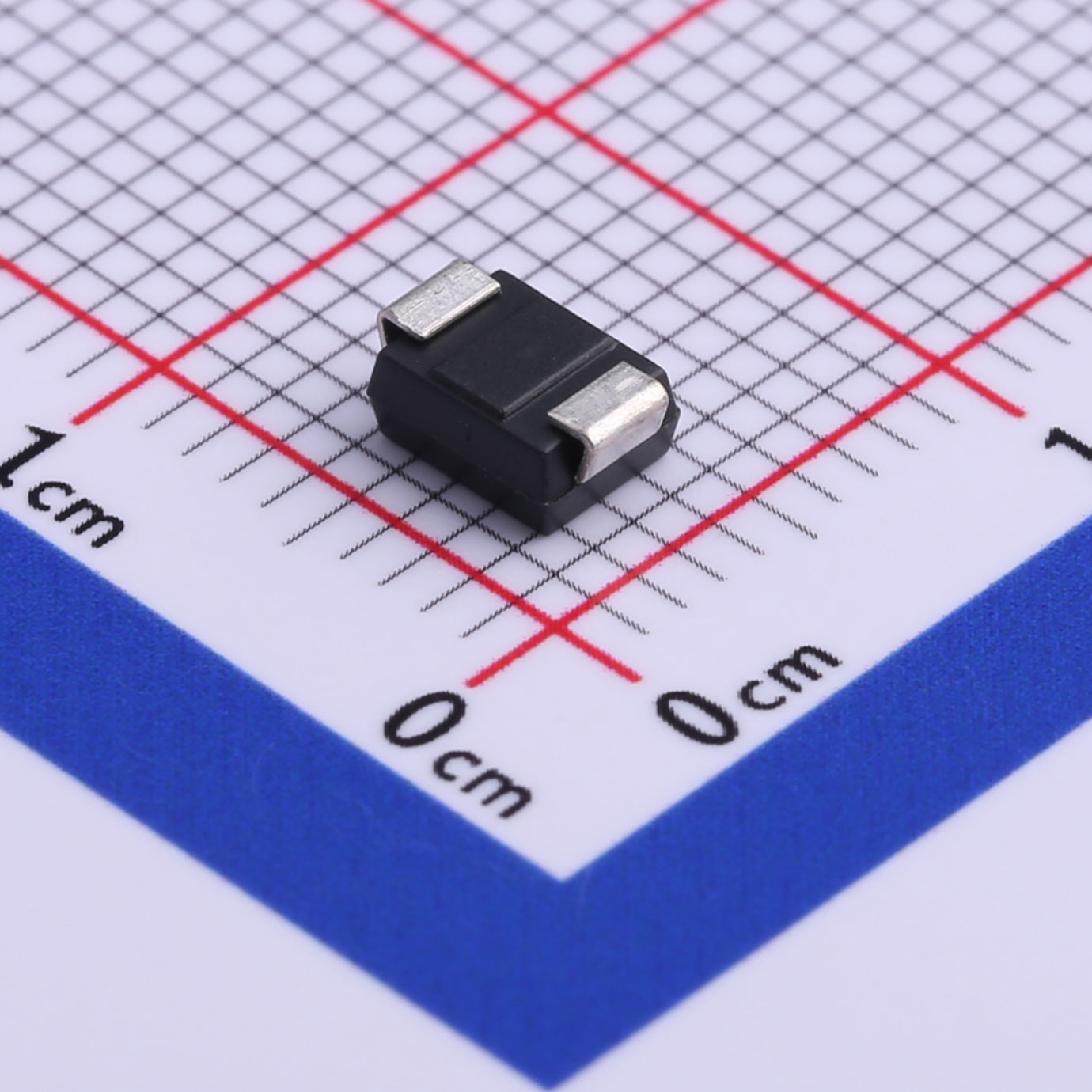

● Case: SMB/DO-214AA, Molded Plastic

● Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026

● Polarity: Cathode Band or Cathode Notch

● Marking: Type Number

● Weight: 0.093 grams (approx.)

Applications

● Industrial Electronics
● Telecommunication Systems
● Automotive Electronics
● Consumer Electronics
