Description

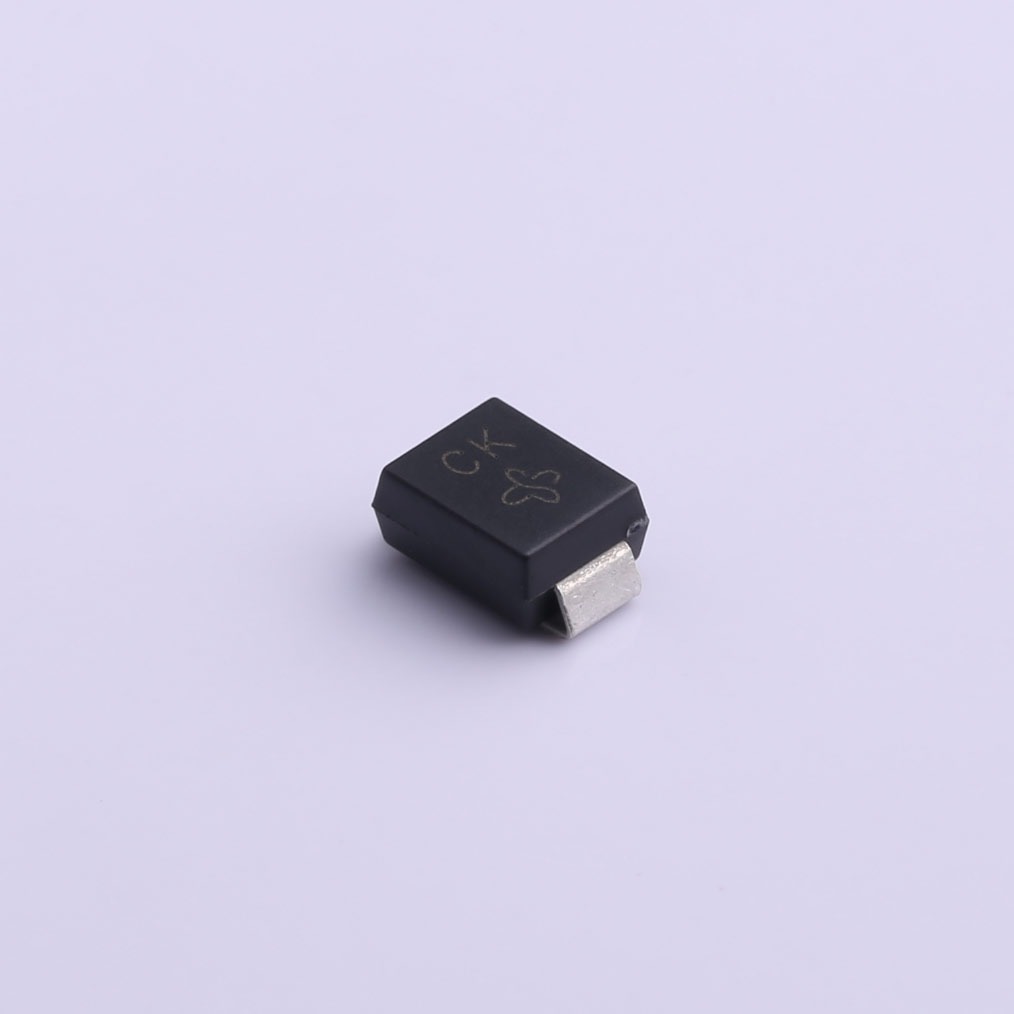

The Polar Bidirectional TVS Diode is a robust semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes. With a VRWM (Working Peak Reverse Voltage) of 30V, VBR (Breakdown Voltage) ranging from 33.3V to 38.3V, and an ultra-low reverse leakage current of 5μA, this diode offers reliable overvoltage protection to ensure the longevity and reliability of electronic systems.
Features
● Glass Passivated Die Construction
● Uni- and Bi-Directional Versions Available
● Excellent Clamping Capability
● Fast Response Time
● Plastic Material: UL Flammability Classification Rating 94V-0
Mechanical Data

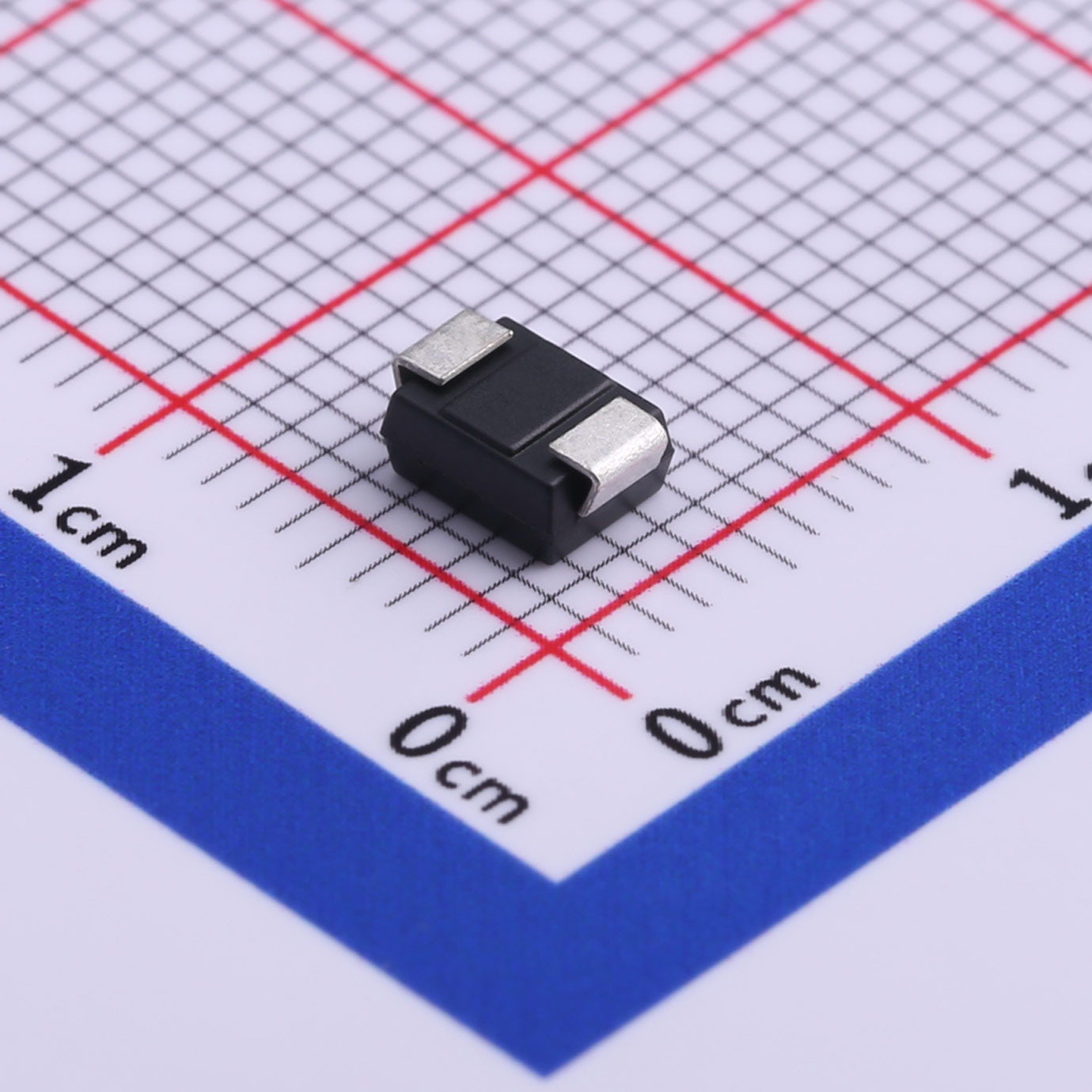

● Case: SMB/DO-214AA, Molded Plastic
● Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
● Polarity: Cathode Band or Cathode Notch
● Marking: Type Number
● Weight: 0.093 grams (approx.)
Applications
● Industrial Electronics
● Telecommunication Systems
● Automotive Electronics
● Consumer Electronics
