Description
The Polar Bidirectional TVS Diode is a sophisticated electronic component designed to safeguard sensitive circuits from transient voltage spikes and surges. With a VRWM (Working Peak Reverse Voltage) of 36V and VBR (Breakdown Voltage) ranging from 40V to 46V, this diode provides robust protection against overvoltage events. It features an ultra-low reverse leakage current of 5μA, ensuring minimal power dissipation and high efficiency during normal operation. The diode can handle surge currents up to 10.3A (Ipp@10/1000μs) and effectively clamps transient voltages with a VC (Clamping Voltage) of 58.1V.

Features

● Glass Passivated Die Construction

● Uni-and Bi-Directional Versions Available

● Excellent Clamping Capability

● Fast Response Time

● Plastic Material: UL Flammability Classification Rating 94V-0

Mechanical Data

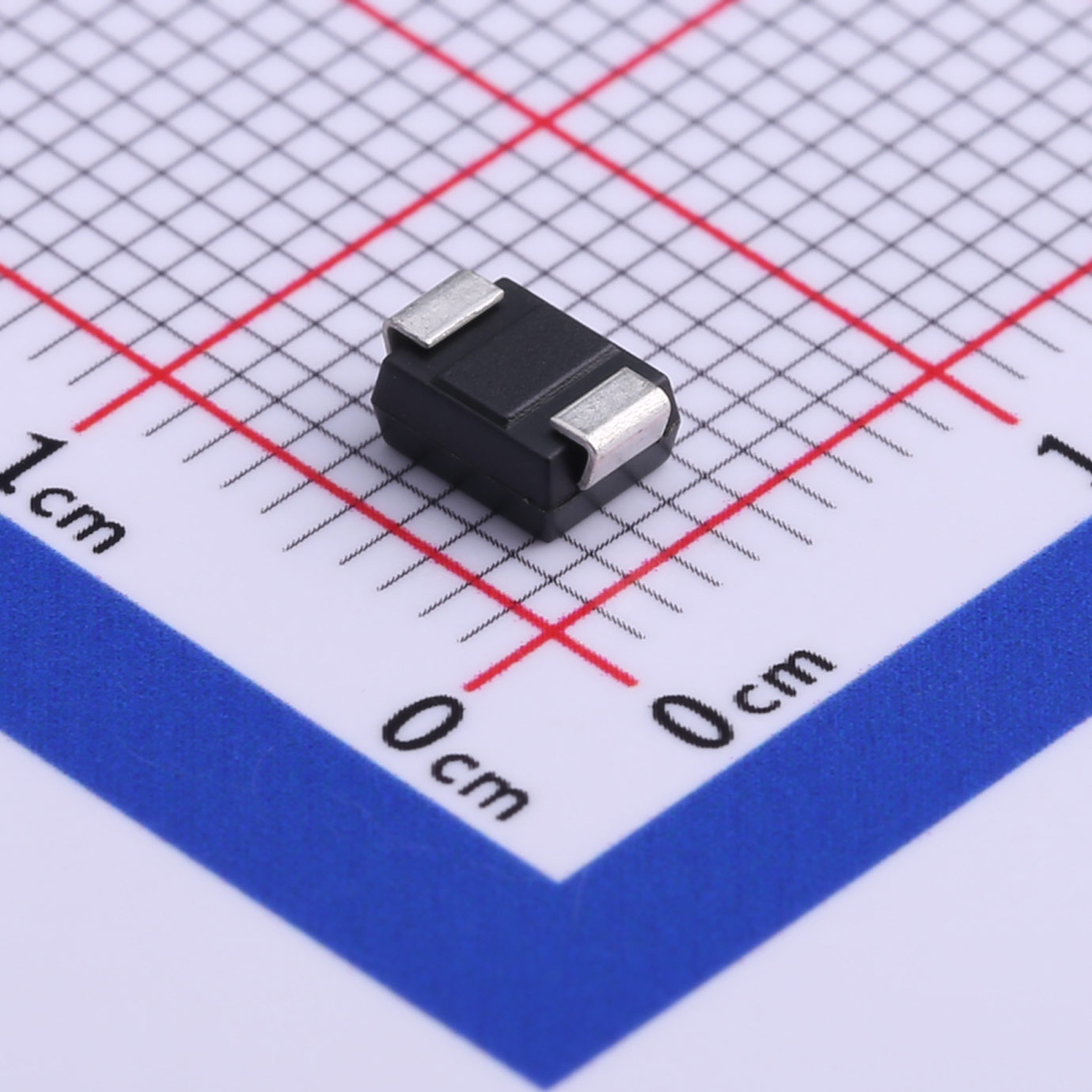

● Case:SMB/DO-214AA,Molded Plastic

● Terminals:Solder Plated,Solderable per MIL-STD-750, Method 2026

● Polarity:Cathode Band or Cathode Notch

● Marking:Type Number

● Weight: 0.093 grams (approx.)

Applications

Telecommunication Systems
Industrial Electronics
Automotive Electronics
Consumer Electronics
