Description
The Polar Bidirectional TVS Diode is an advanced semiconductor device engineered to protect sensitive electronics from voltage spikes and surges. With a V_RWM (Working Peak Reverse Voltage) of 40V and V_BR (Breakdown Voltage) ranging from 44.4V to 51.1V, this diode efficiently clamps transient voltages to safe levels, safeguarding against potential damage. It features an ultra-low reverse leakage current (Ir) of 5μA, ensuring minimal power consumption and maximum efficiency in normal operating conditions. The diode can handle surge currents up to 9.3A (I_pp@10/1000μs) and has a clamping voltage (V_C) of 64.5V, providing robust protection against transient events up to 600W (P_pp@10/1000μs).

Features

● Glass Passivated Die Construction

● Uni- and Bi-Directional Versions Available

● Excellent Clamping Capability

● Fast Response Time

● Plastic Material: UL Flammability Classification Rating 94V-0

Mechanical Data

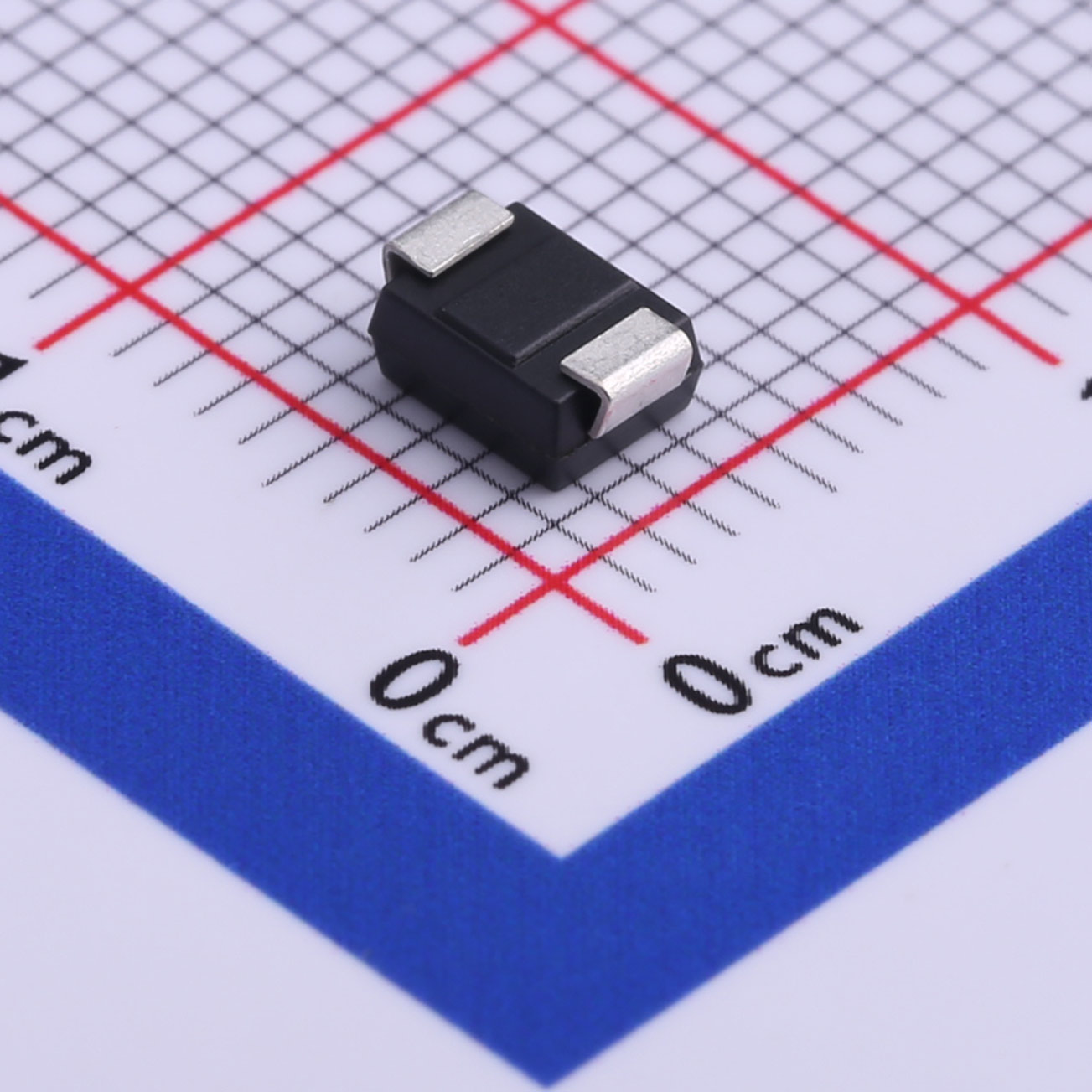

● Case: SMB/DO-214AA, Molded Plastic

● Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026

● Polarity: Cathode Band or Cathode Notch

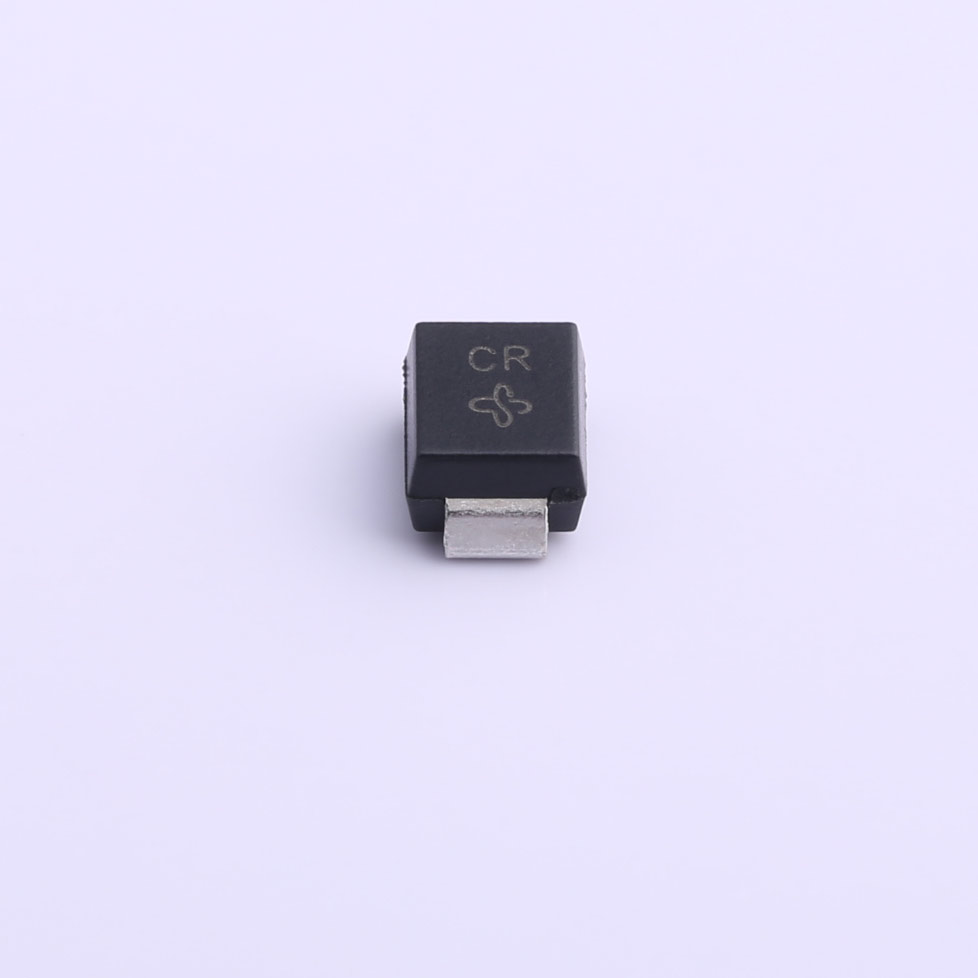

● Marking: Type Number

● Weight: 0.093 grams (approx.)

Applications

● Telecommunications
● Industrial Electronics
● Automotive
● Consumer Electronics
