Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description
The Polar Bidirectional TVS Diode is an advanced semiconductor device designed to protect sensitive electronics from transient voltage events in both directions. With a VRWM (Working Peak Reverse Voltage) of 12V, this diode offers robust protection within its specified voltage range. It features a bidirectional VBR (Breakdown Voltage) ranging from 13.3V to 14.7V, ensuring effective clamping of transient voltages to safeguard connected components. The diode exhibits an ultra-low reverse leakage current (Ir) of 1μA, minimizing power consumption and maintaining efficiency. With impressive surge handling capabilities, it can withstand peak pulse currents (Ipp) of 75.4A and transient power dissipation (Ppp) of 1500W for 10/1000μs pulses. The clamping voltage (VC) of 19.9V ensures that downstream electronics are protected against voltage spikes.

FEATURES

• 1500W peak pulse power capability at 10/1000μs waveform

• For surface mounted applications to optimize board space

• Glass passivated chip junction

• Halogen free and RoHS compliant

MECHANICAL DATA

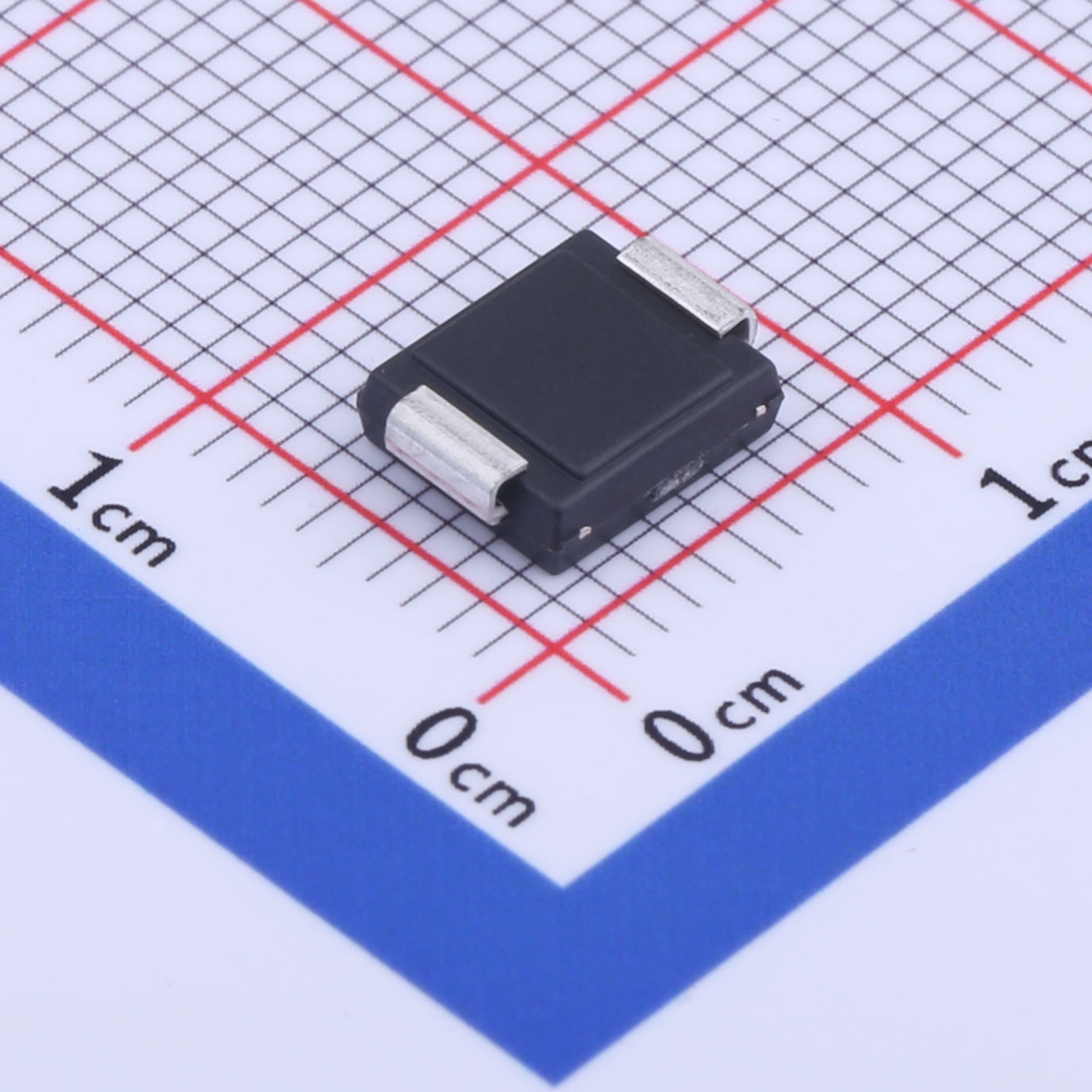

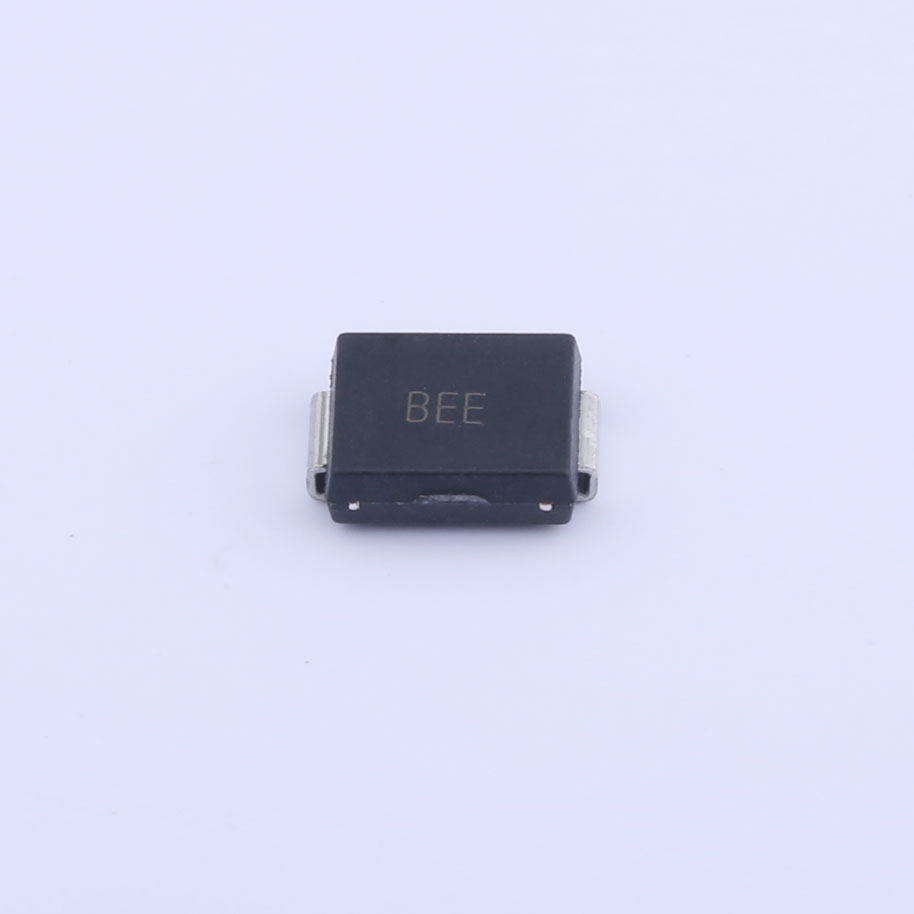

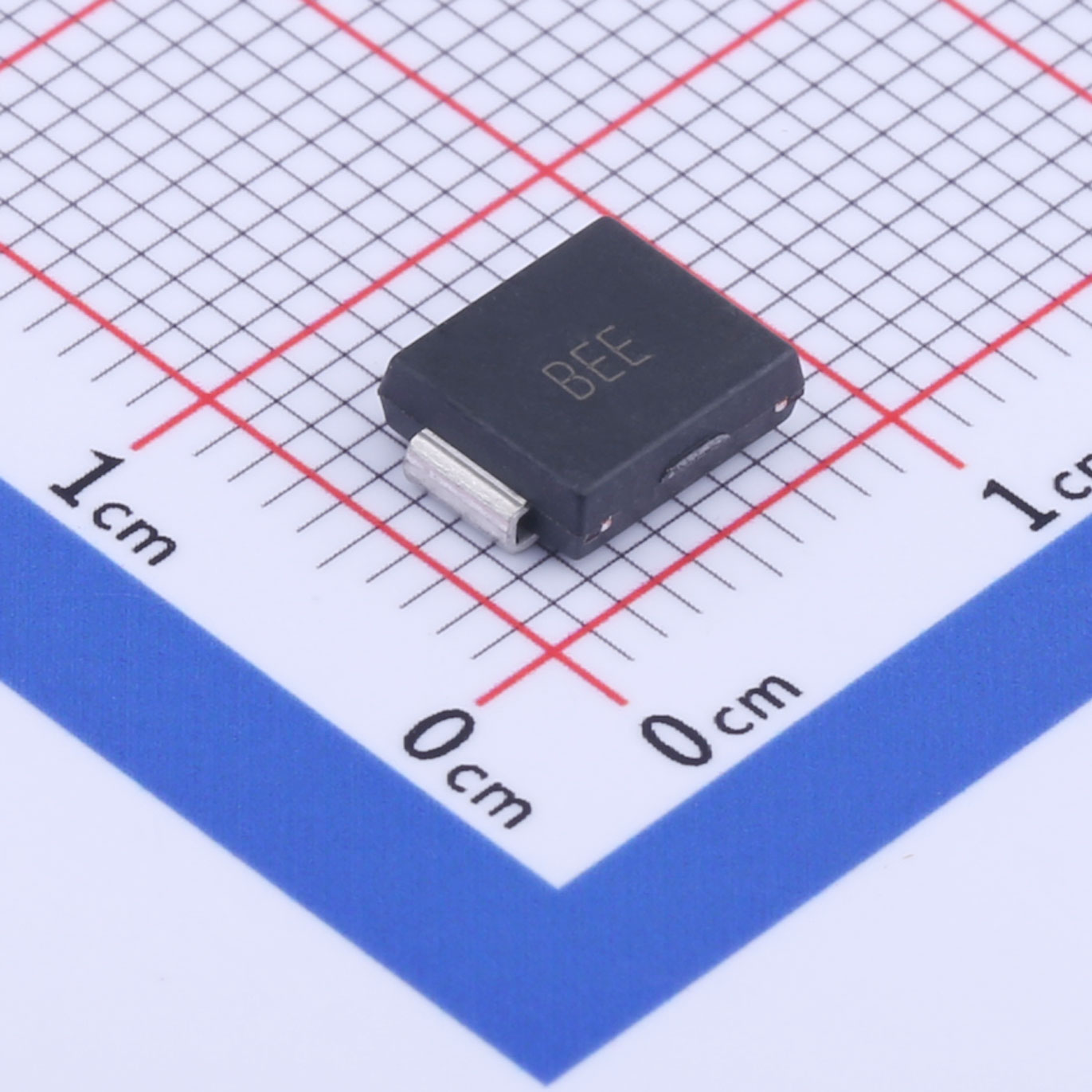

• Case: SMC

• Terminals: Solderable per MIL-STD-750, Method 2026

• Approx. Weight: 0.22g (0.0077oz)

Applications

• Telecommunications
• Consumer Electronics
• Automotive Electronics
• Industrial Applications
