Description

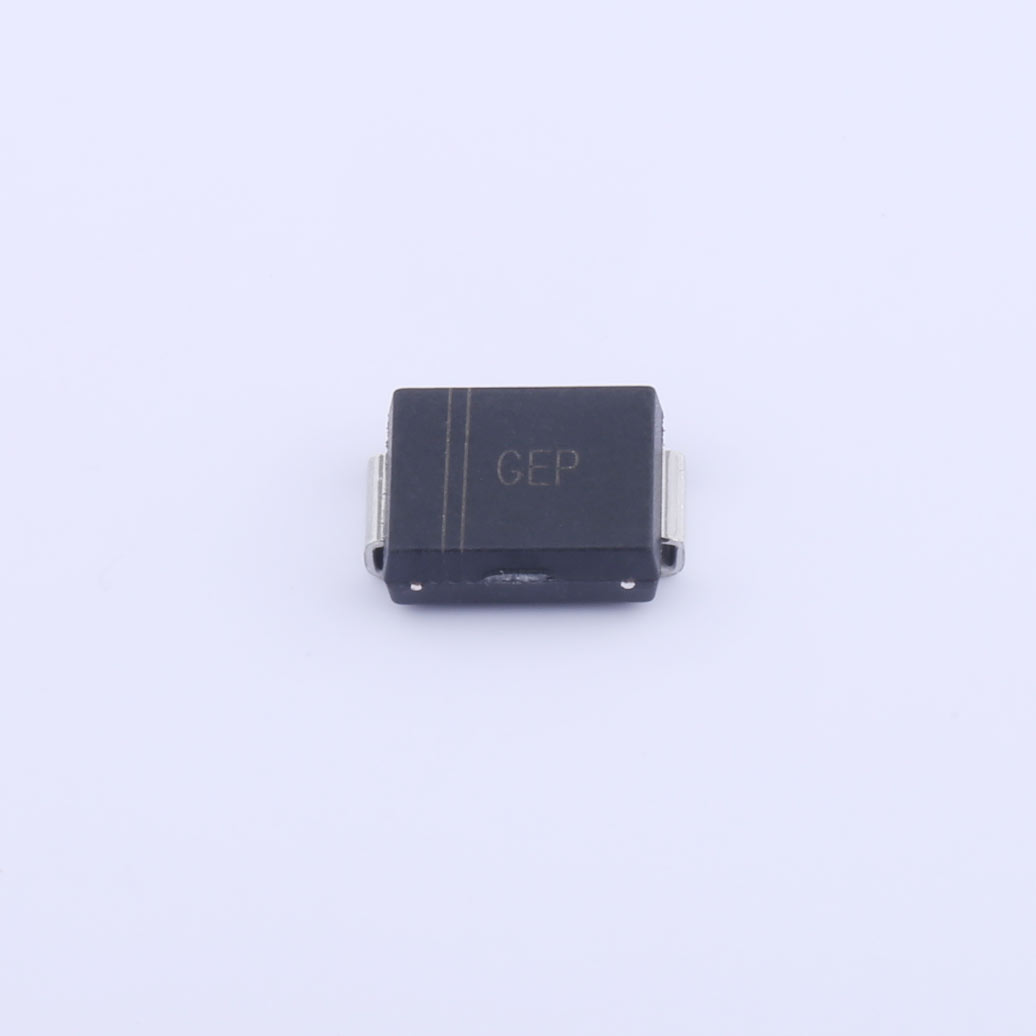

The Polar Unidirectional TVS Diode is a high-performance semiconductor device designed to protect sensitive electronics from transient voltage events in a single direction. With a V_RWM (Working Peak Reverse Voltage) of 16V, this diode offers robust protection within its specified voltage range. It features a unidirectional V_BR (Breakdown Voltage) ranging from 17.8V to 19.7V, effectively clamping transient voltages to safeguard connected components. The diode exhibits an ultra-low reverse leakage current (I_r) of 1μA, ensuring minimal power consumption and maintaining efficiency. With impressive surge handling capabilities, it can withstand peak pulse currents (I_pp) of 57.7A and transient power dissipation (P_pp) of 1500W for 10/1000μs pulses. The clamping voltage (V_C) of 26V ensures that downstream electronics are protected against voltage spikes.

Features

● 1500W peak pulse power capability at 10/1000μs waveform

● For surface mounted applications to optimize board space

● Glass passivated chip junction

● Halogen free and RoHS compliant

Mechanical Data

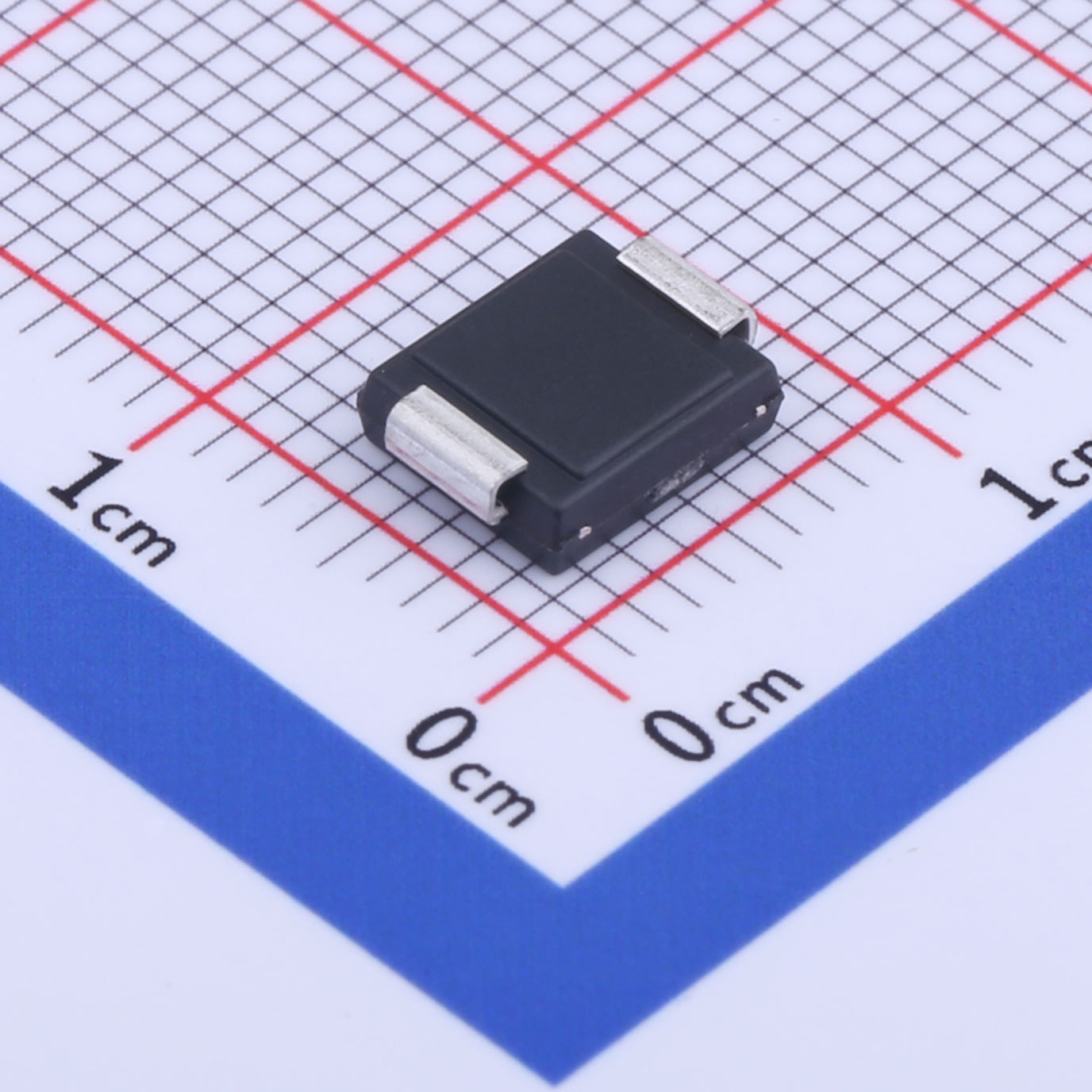

● Case: SMC

● Terminals: Solderable per MIL-STD-750, Method 2026

● Approx. Weight: 0.22g (0.0077oz)

Applications

● Telecommunications

● Consumer Electronics

● Automotive Electronics

● Industrial Applications
