Description

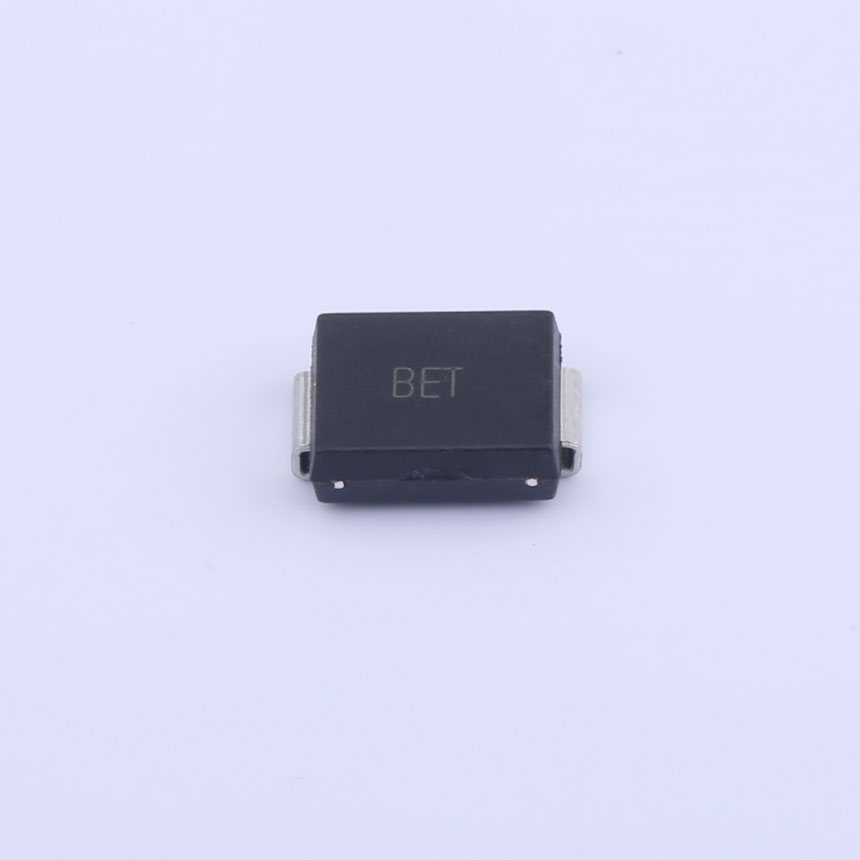

The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile semiconductor device designed to protect sensitive electronic circuits from transient voltage events occurring in both directions. With a V_RWM (Working Peak Reverse Voltage) of 18V, this diode provides reliable protection within its operating voltage range. It features bidirectional V_BR (Breakdown Voltage) specifications, with a minimum clamping voltage of 20V and a maximum of 22.1V, effectively suppressing voltage spikes to safeguard connected components. The diode maintains an ultra-low reverse leakage current (I_r) of 1μA, ensuring minimal power consumption and high efficiency during normal operation. It offers robust surge protection, capable of handling peak pulse currents (I_pp) of 51.4A and transient power dissipation (P_pp) of 1500W for 10/1000μs pulses. The clamping voltage (V_C) is set at 29.2V, providing reliable voltage clamping during transient events to protect downstream electronics.

Features

● 1500W peak pulse power capability at 10/1000μs waveform

● For surface mounted applications to optimize board space

● Glass passivated chip junction

● Halogen free and RoHS compliant

Mechanical Data

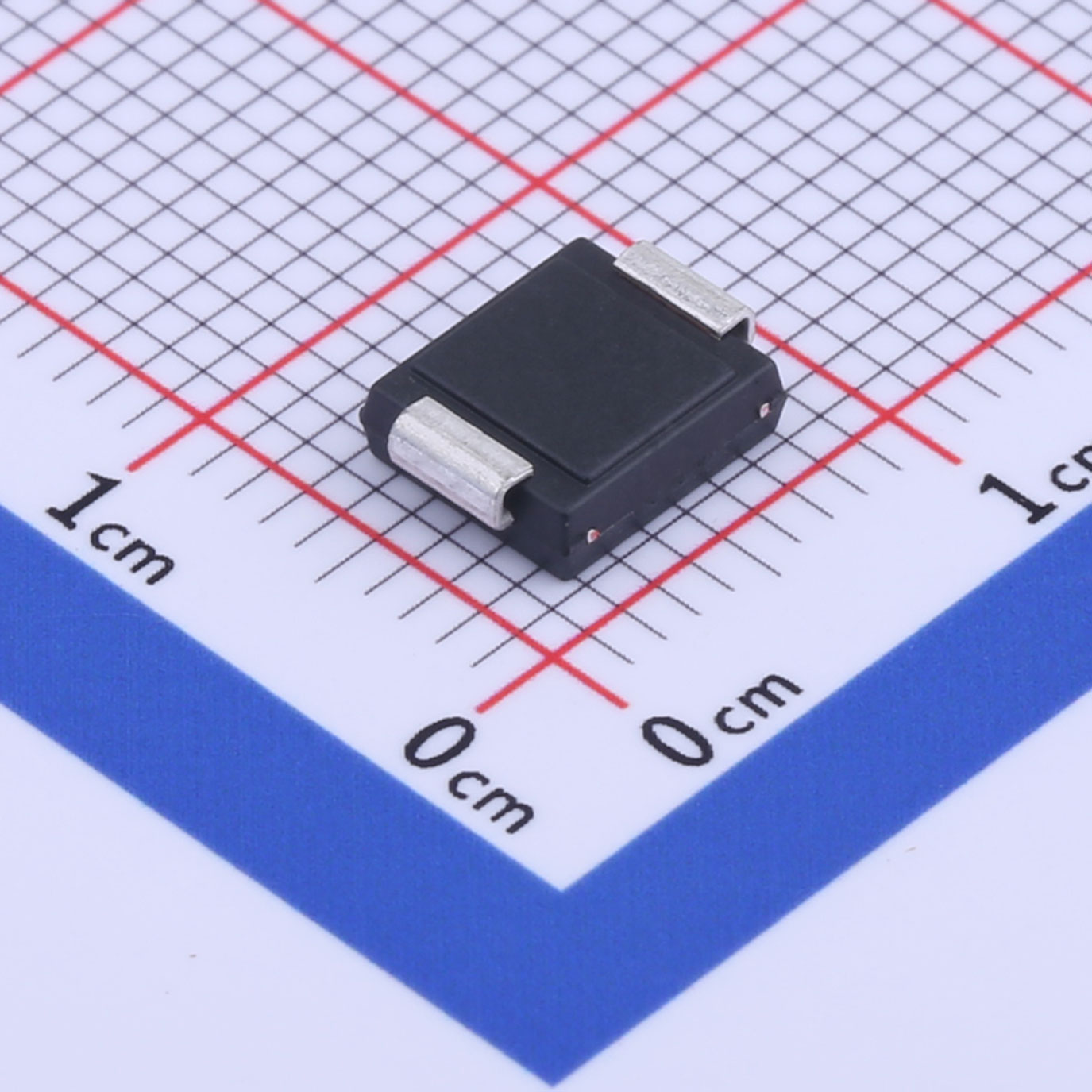

● Case: SMC

● Terminals: Solderable per MIL-STD-750, Method 2026

● Approx. Weight: 0.22g (0.0077oz)

Applications

● Telecommunications

● Consumer Electronics

● Automotive Electronics

● Industrial Applications
