Description

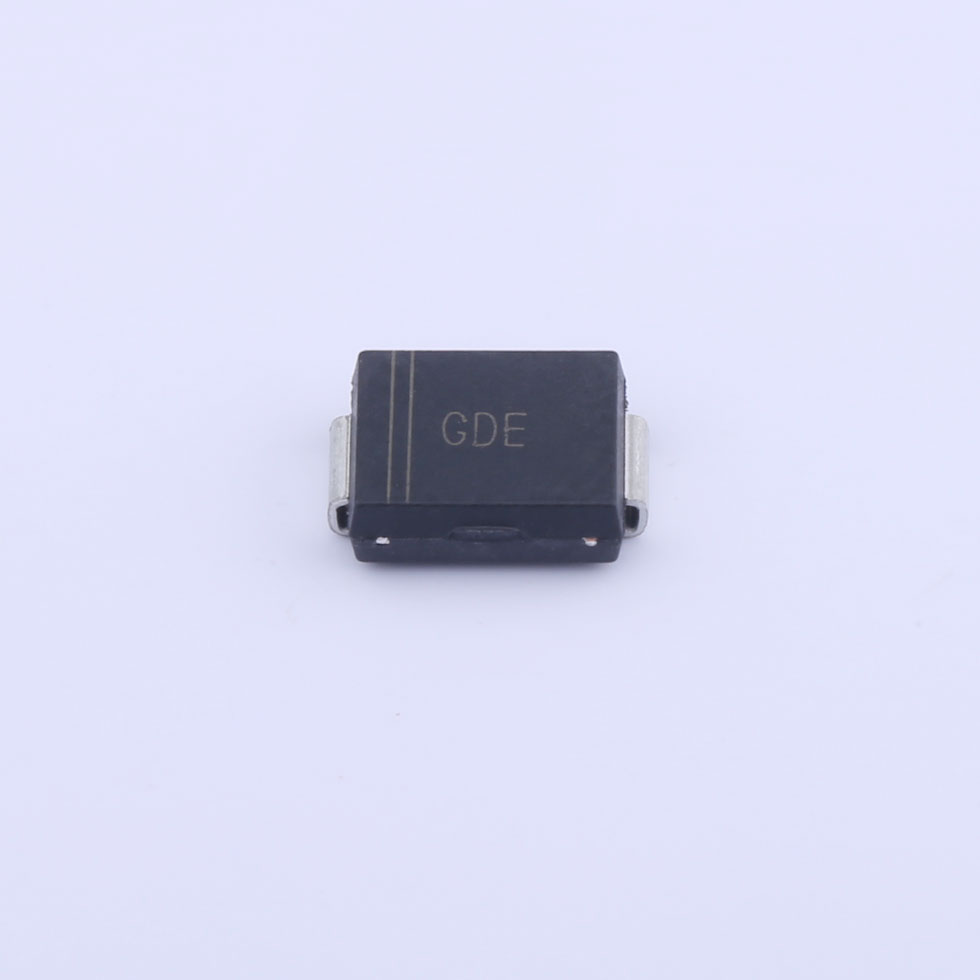

The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is a specialized electronic component designed to protect sensitive circuits from transient voltage spikes and surges in one direction. With a V_RWM (Working Peak Reverse Voltage) of 5V, this diode clamps transient voltages that exceed its breakdown voltage (V_BR), ranging from 6.4V (minimum) to 7V (maximum). Featuring a low reverse leakage current (I_r) of 800μA, it ensures minimal power loss during normal operation. The diode is capable of handling peak pulse currents (Ipp) of up to 163A and is optimized for 10/1000μs pulses, with a clamping voltage (V_C) of 9.2V.

Features

● 1500W peak pulse power capability at 10/1000μs waveform

● For surface mounted applications to optimize board space

● Glass passivated chip junction

● Halogen free and RoHS compliant

Mechanical Data

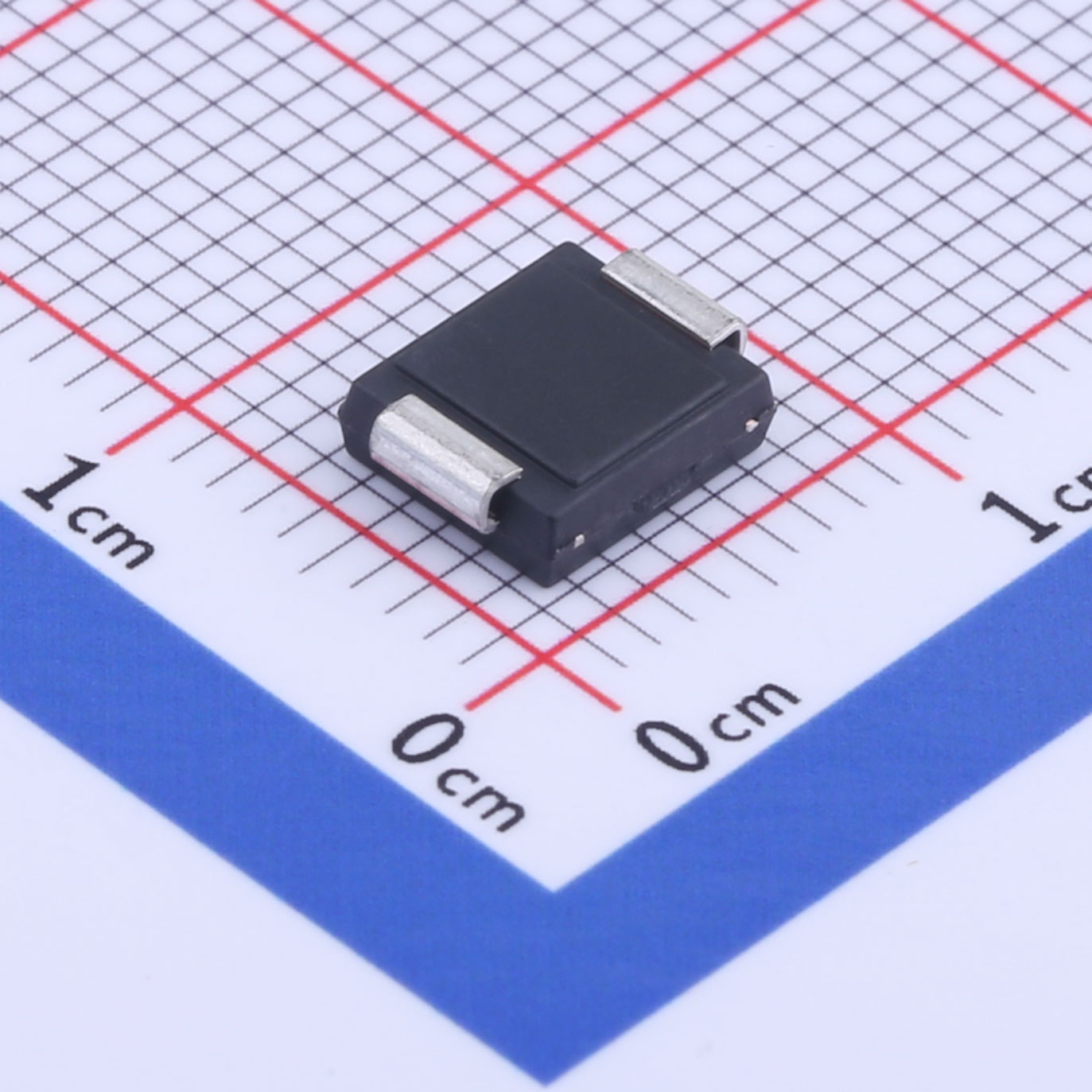

● Case: SMC

● Terminals: Solderable per MIL-STD-750, Method 2026

● Approx. Weight: 0.22g (0.0077oz)

Applications

● Consumer Electronics

● Embedded Systems

● Communications Equipment:

● Automotive Electronic
