Description

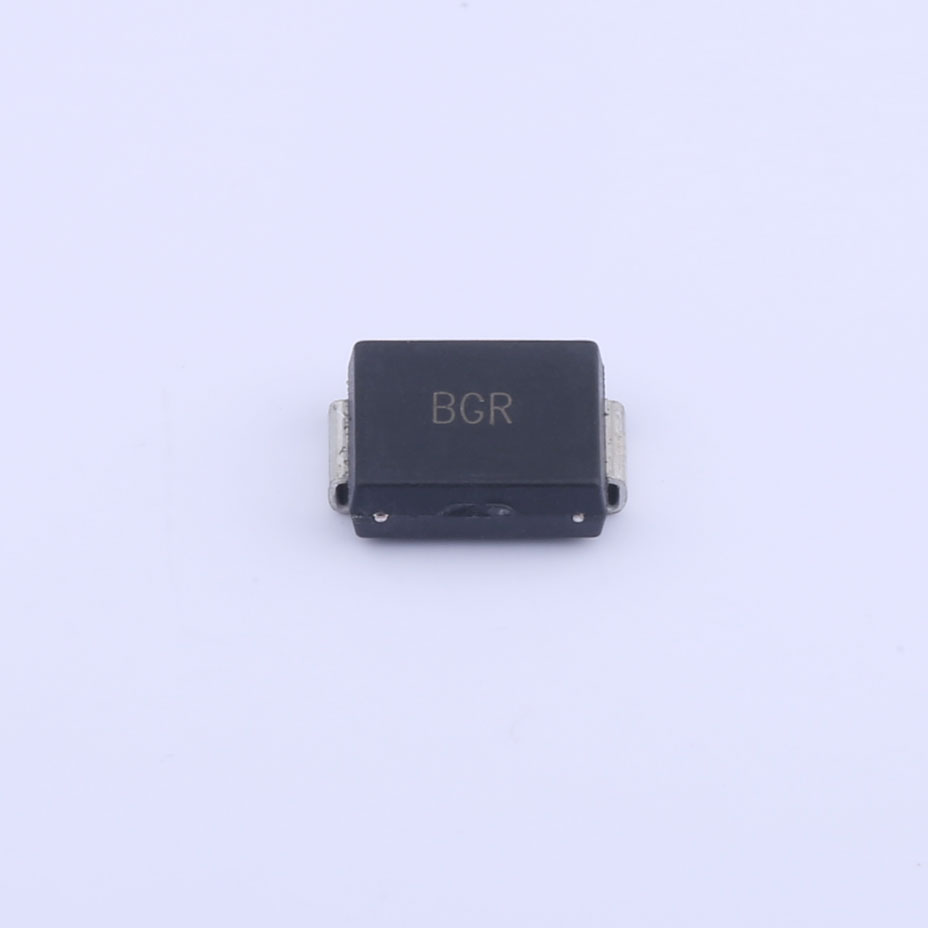

The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an advanced electronic component designed to protect sensitive circuits from transient voltage spikes and surges in both directions. With a VRWM (Working Peak Reverse Voltage) of 75V, this diode effectively clamps transient voltages that exceed its breakdown voltage (VBR), which ranges from 83.3V (minimum) to 92.1V (maximum). Featuring an ultra-low reverse leakage current (Ir) of 1μA, it ensures minimal power loss during normal operation. The diode can handle peak pulse currents (Ipp) of up to 12.4A for 10/1000μs pulses, with a clamping voltage (VC) of 121V.

Features

● 1500W peak pulse power capability at 10/1000μs waveform

● For surface mounted applications to optimize board space

● Glass passivated chip junction

● Halogen free and RoHS compliant

Mechanical Data

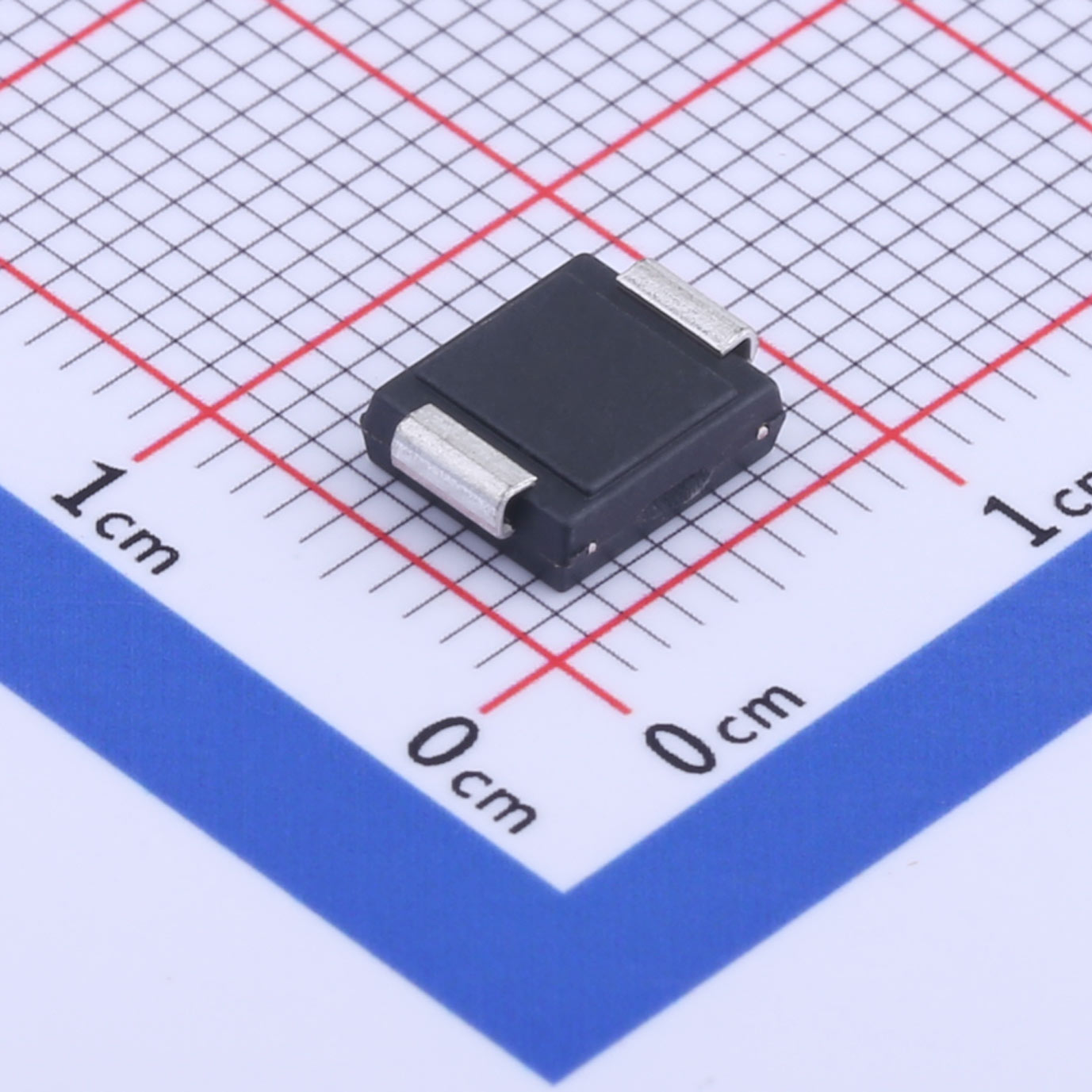

● Case: SMC

● Terminals: Solderable per MIL-STD-750, Method 2026

● Approx. Weight: 0.22g (0.0077oz)

Applications

● Telecommunications

● Power Supplies

● Industrial Equipment

● Automotive Electronics

● Consumer Electronics
