Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

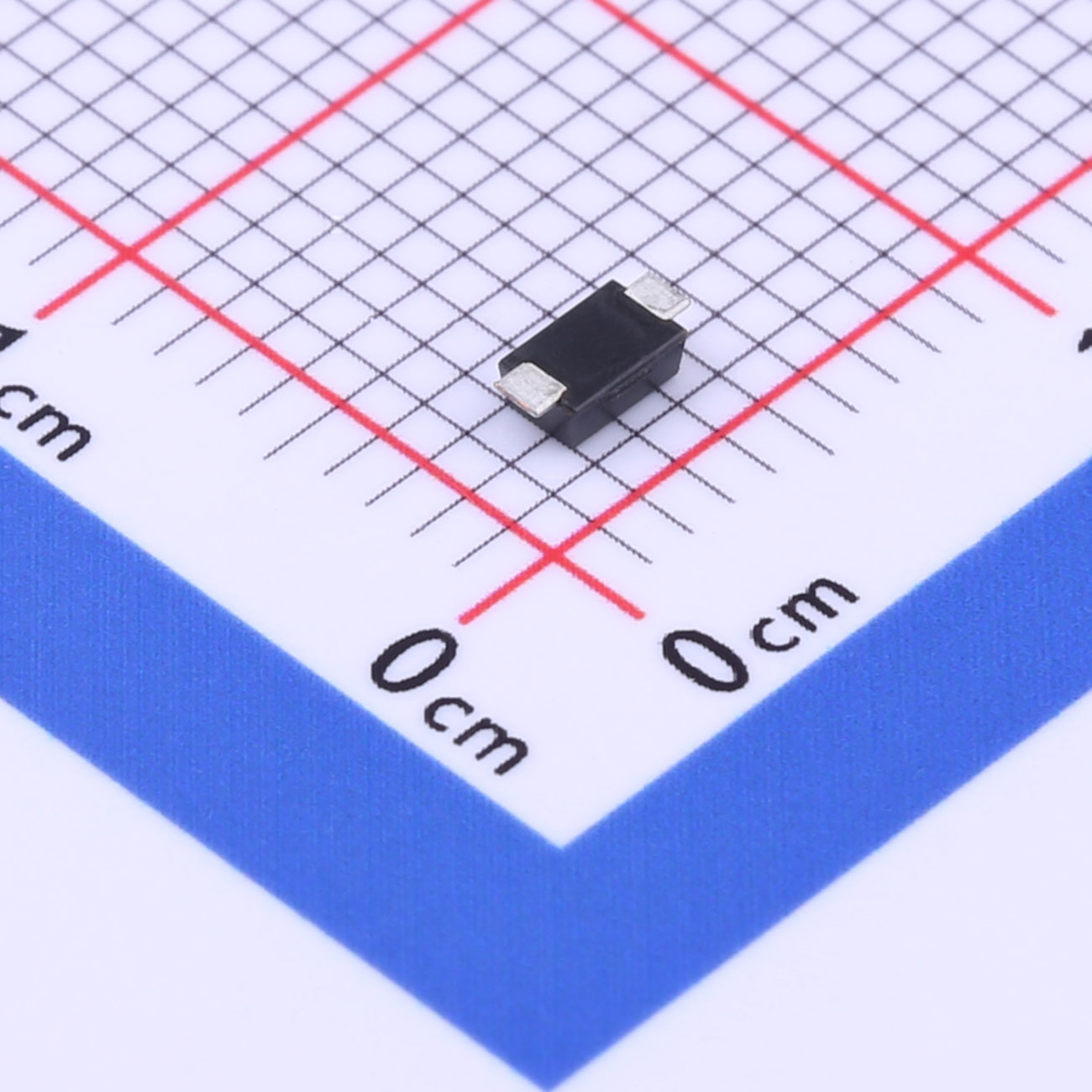

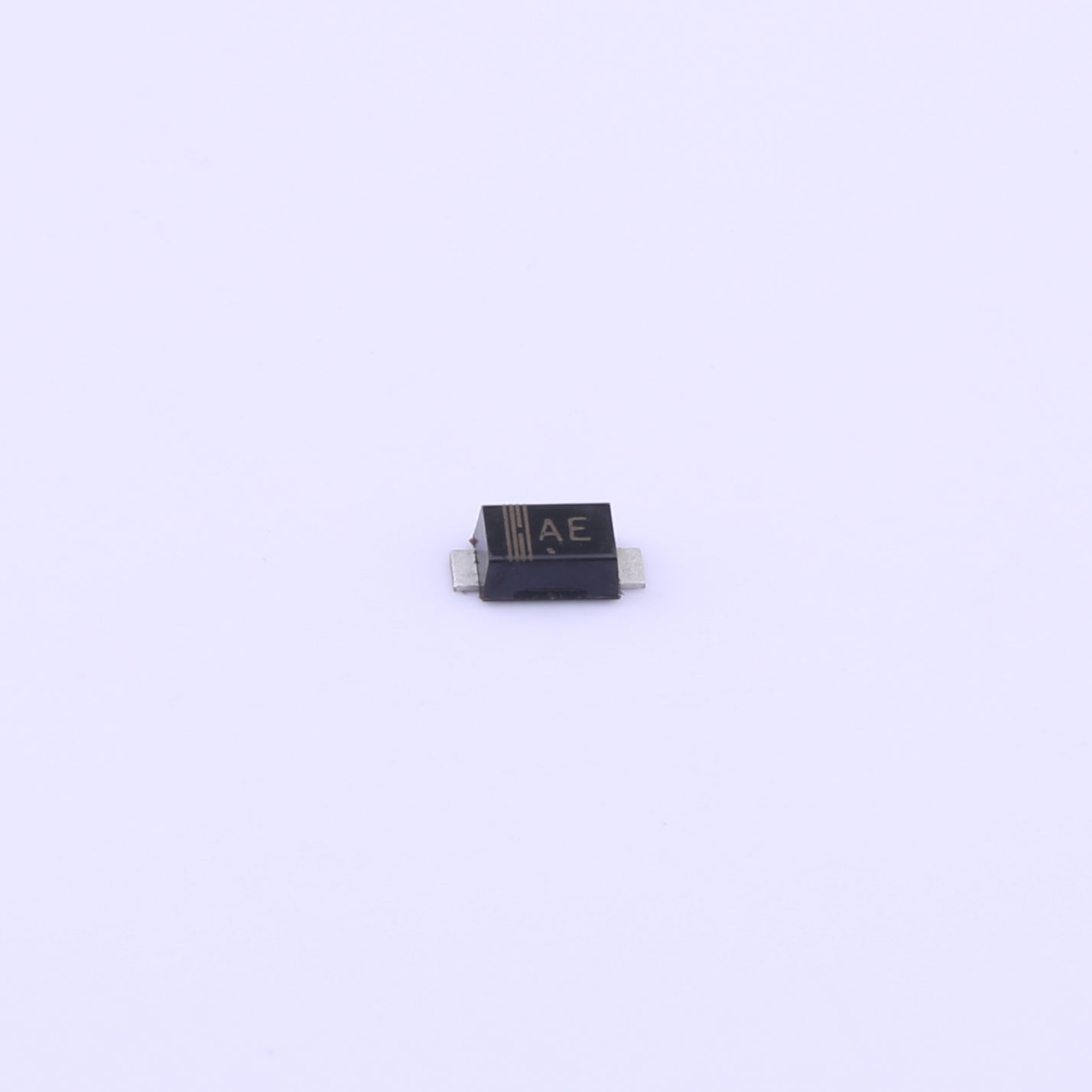

The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is a specialized electronic component designed to protect sensitive circuits from transient voltage spikes and surges. With a V_RWM (Working Peak Reverse Voltage) of 5V, this diode is optimized for unidirectional transient voltage suppression. It features a V_BR (Breakdown Voltage) ranging from 6.4V (minimum) to 7V (maximum), initiating conduction to clamp voltages exceeding these thresholds. The diode maintains an I_r (Reverse Leakage Current) of 400μA, ensuring minimal standby power consumption. It can handle peak pulse currents (I_pp) of up to 21.7mA for 10/1000μs pulses, with a low clamping voltage (V_C) of 9.2V. Additionally, it offers a P_pp (Peak Pulse Power) rating of 200W for 10/1000μs pulses, effectively dissipating transient power to safeguard connected electronics.
