Description

The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile electronic component designed to protect sensitive circuits from transient voltage spikes and surges in both directions. Featuring a V_RWM (Working Peak Reverse Voltage) of 6.5V, this diode is effective for bidirectional transient voltage suppression applications. It has a V_BR (Breakdown Voltage) range from 7.22V (minimum) to 7.98V (maximum), ensuring reliable clamping of voltages exceeding these thresholds in either polarity. With an I_r (Reverse Leakage Current) of 250μA, the diode maintains low standby power consumption. It can handle peak pulse currents (I_pp) of up to 17.9A for 10/1000μs pulses, and offers a low clamping voltage (V_C) of 11.2V. Additionally, it boasts a P_pp (Peak Pulse Power) rating of 200W for 10/1000μs pulses, effectively dissipating transient power to protect connected electronics.

Features

● For surface mounted applications

● Low profile package

● Low incremental surge resistance, excellent clamping capability

● 200W peak pulse power capability with a10/1000 ms wave from,repetition rate (dutycycle):0.01%

● High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals

Mechanical Data

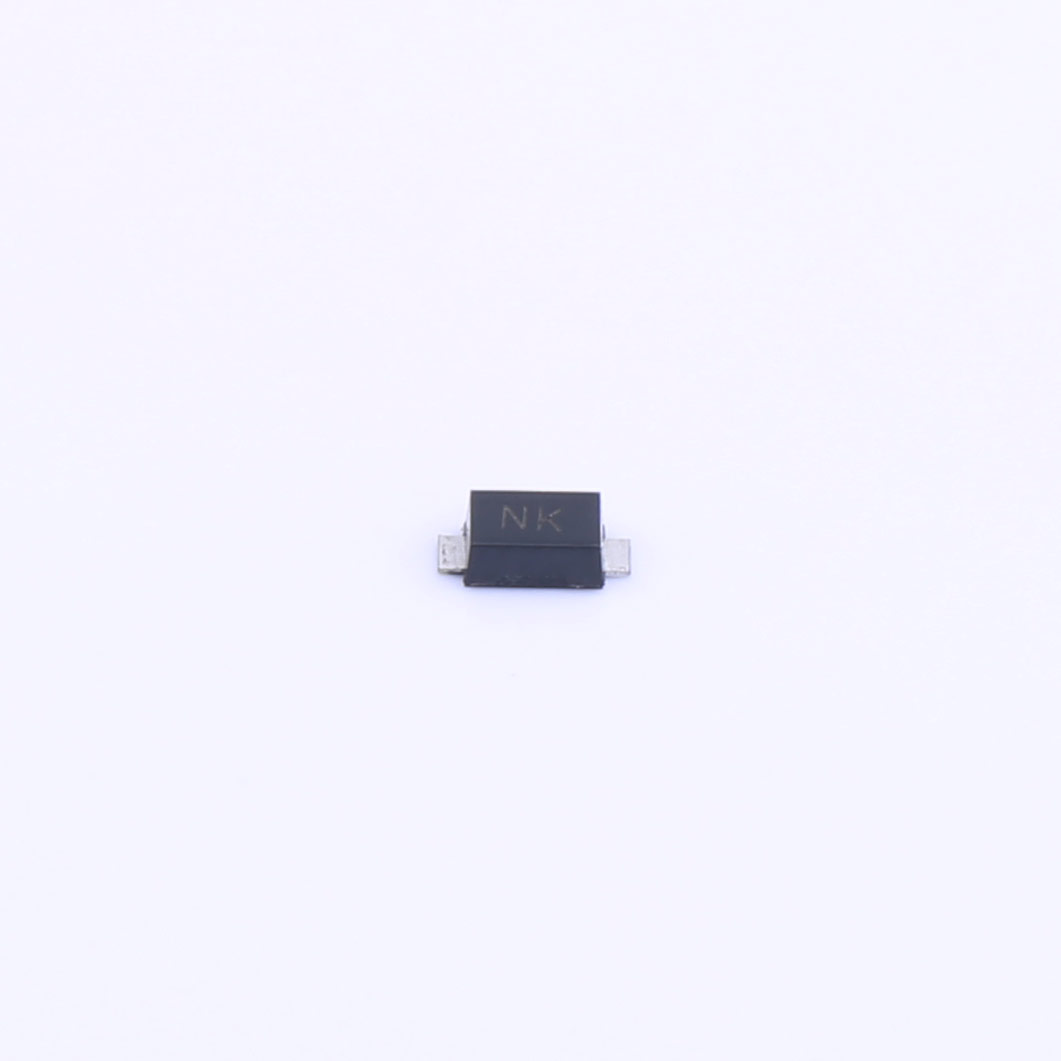

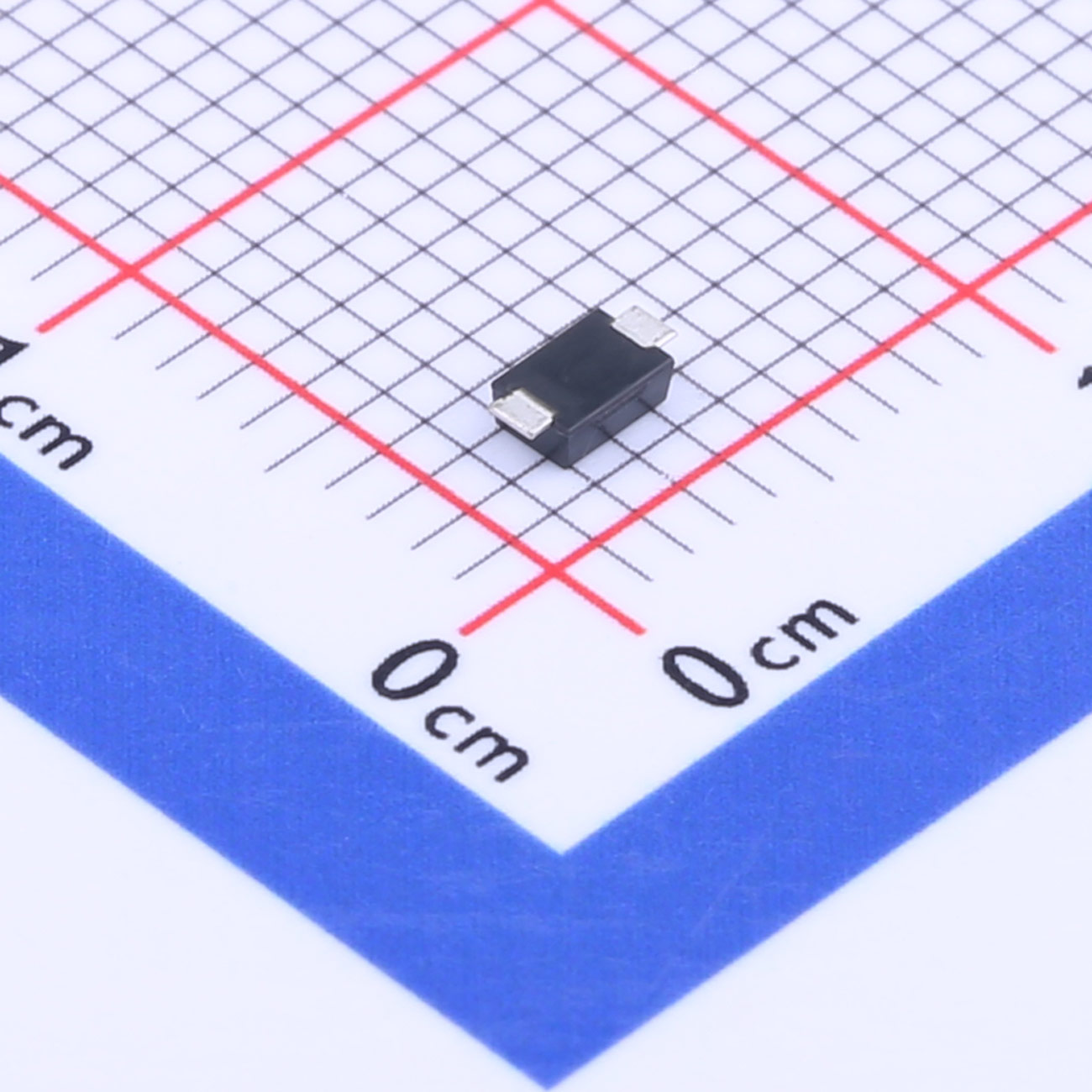

● Case: JEDEC SOD-123FL, molded plastic over passivated chip

● Polarity: Color band denotes positive end ( cathode ) except for bidirectional

● Mounting position: Any

● Weight: 0.006 ounces, 0.02 gram

Applications

● Telecommunications

● Industrial Controls

● Automotive Electronics

● Consumer Electronics

● Power Supplies
