Description

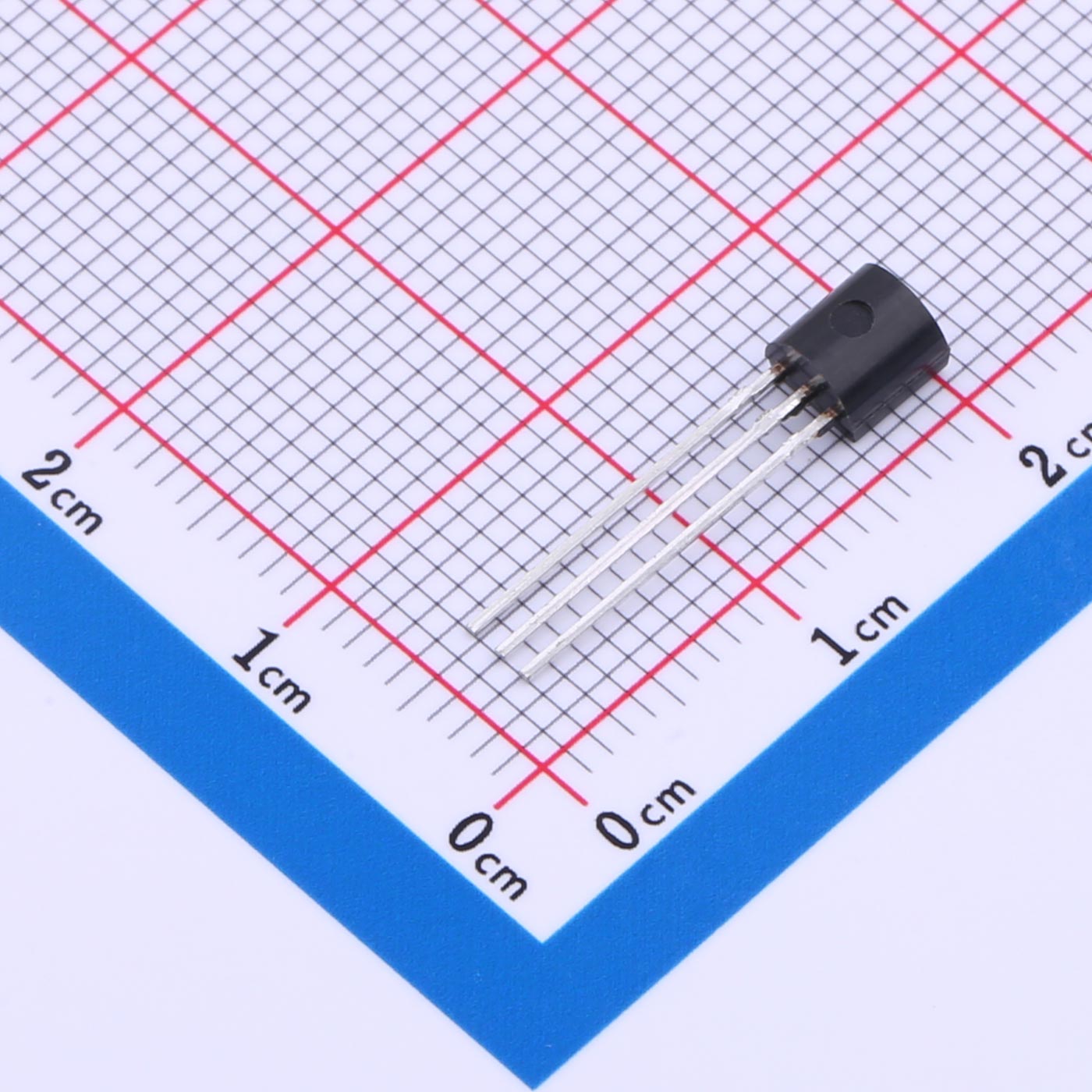

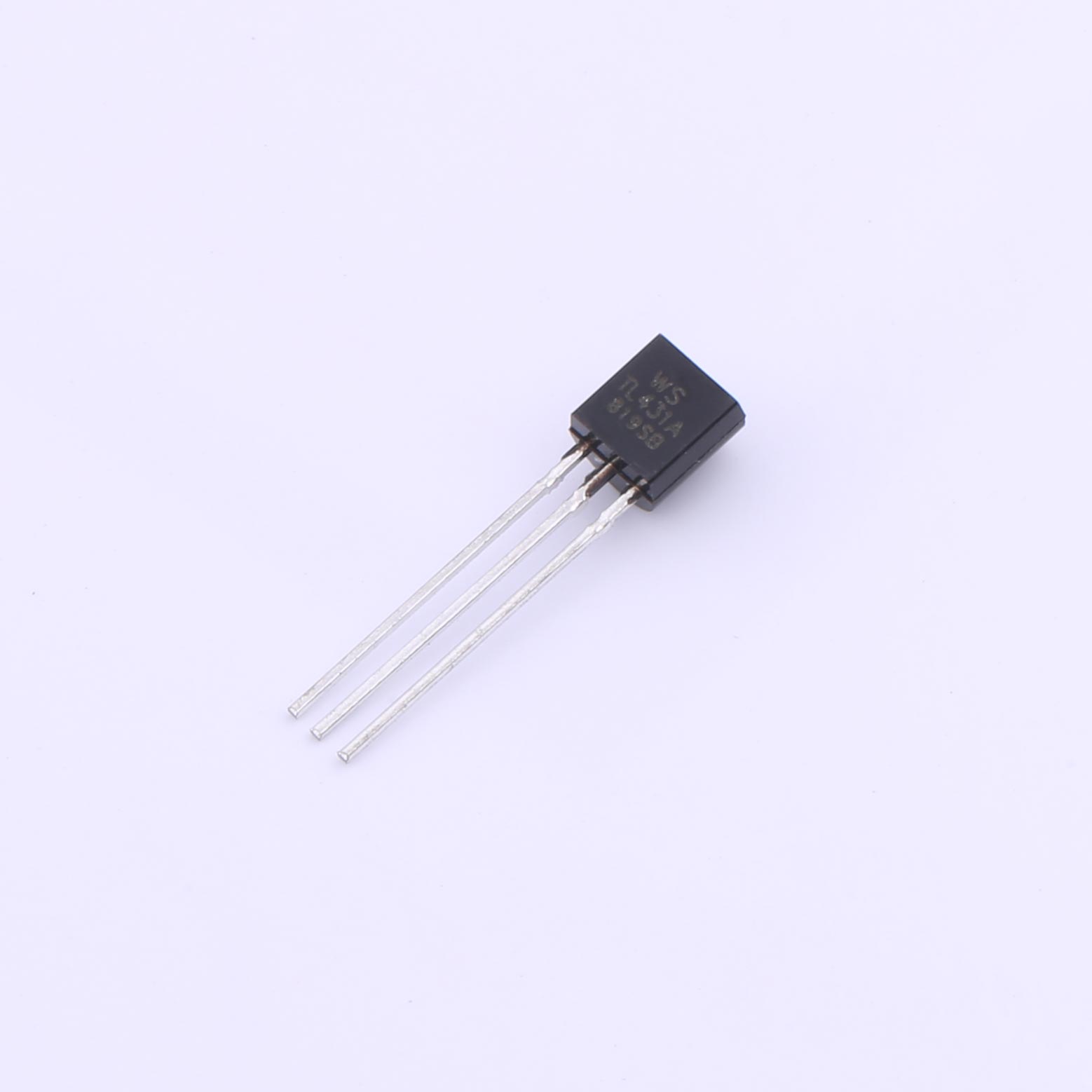

The TL431L is a three-terminal adjustable shunt regulatoroffering excellent temperature stability . This device has a typical dynamic output impedance of 0.2Ω. The device can be used as a replacement for zener diodes in many applications.

Features

●The output voltage can be adjusted to 36V
●Low dynamic output impedance, its typical value is 0.2Ω
●Trapping current capability is 1 to 100mA
●Low output noise voltage
●Fast on -state response
●The effective temperature compensation in the working range of full temperature
●The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/℃

Application
●Shunt Regulator
●High-Current Shunt Regulator
●Precision Current Limiter
