TIP41C NPN Power Transistors

TIP41C NPN Power Transistors

TIP41C NPN Power Transistors

TIP41C NPN Power Transistors

IC(max) = 6A
VCEO(max) =100V

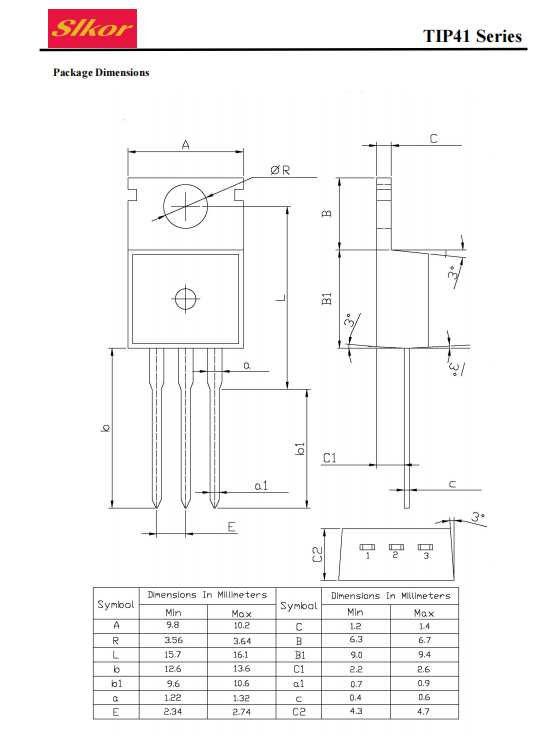

Package: TO-220

Inquiry Datasheet

Product Details

Descriptions

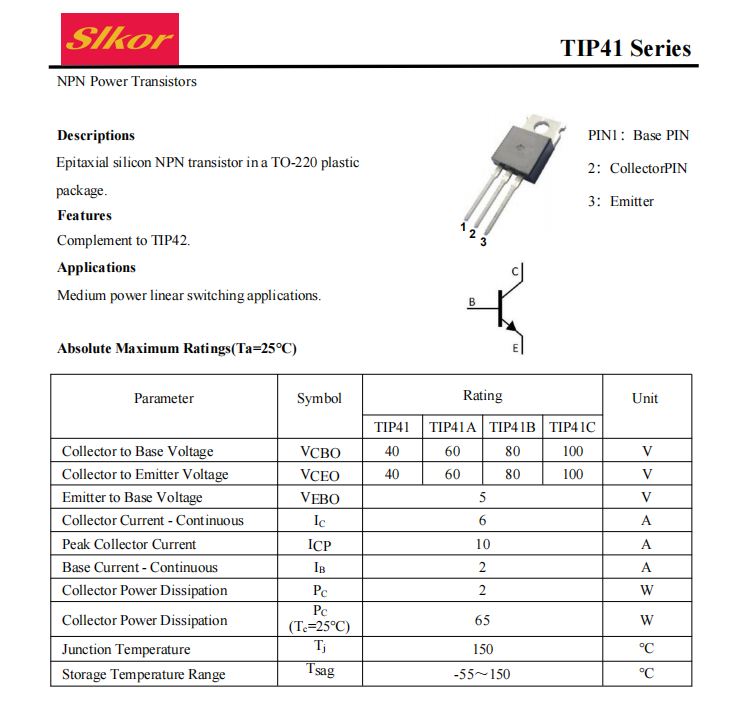

Epitaxial silicon NPN transistor in a TO-220 plastic package.

Features

Complement to TIP42.

Applications

Medium power linear switching applications.
