Description

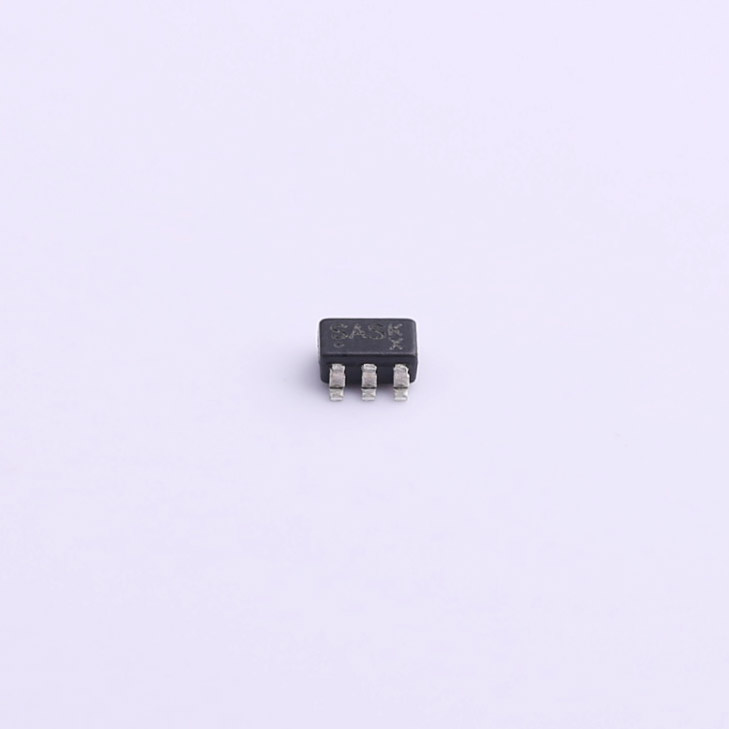

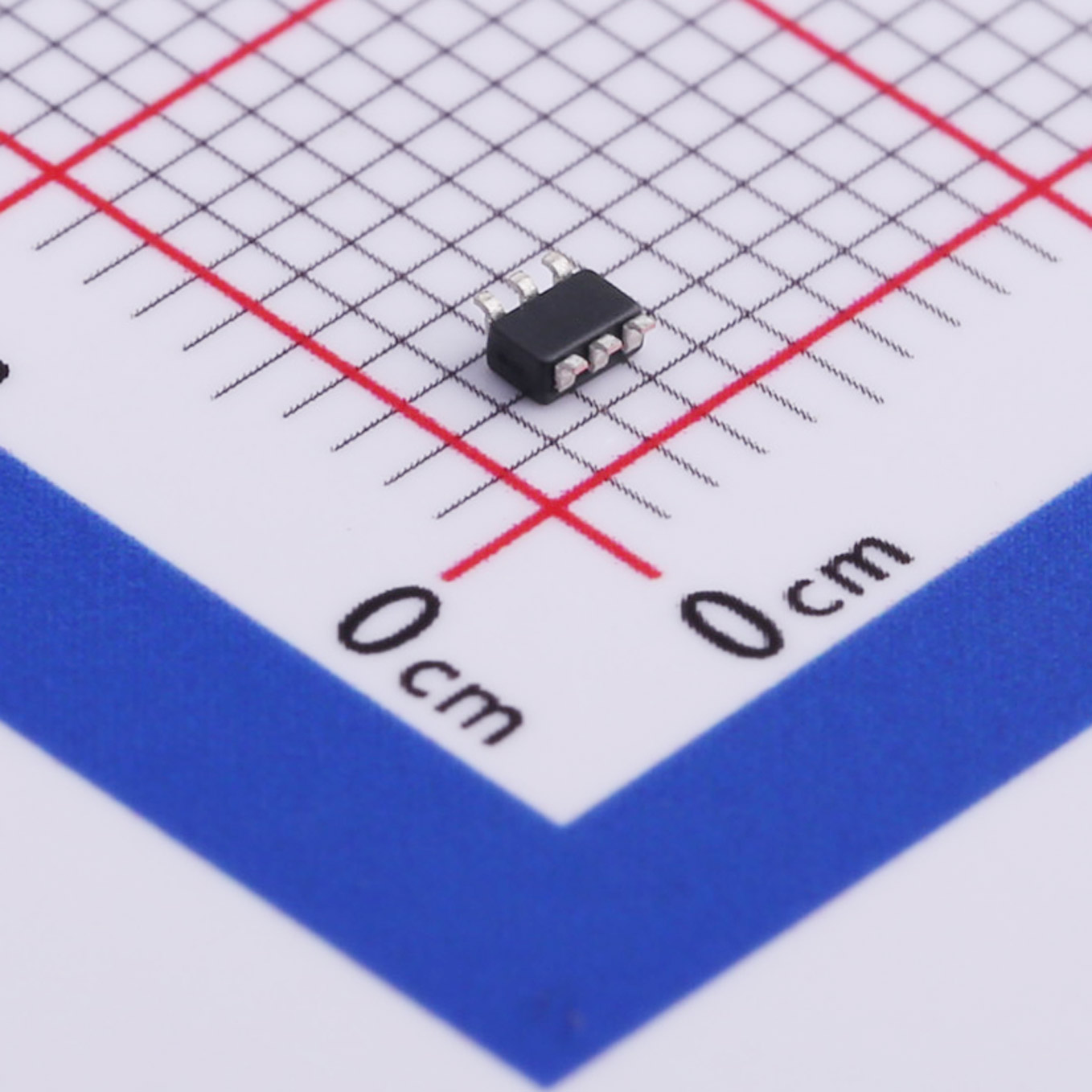

The Polar TVS (Transient Voltage Suppression) Diode is a state-of-the-art semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes. It provides robust clamping and transient voltage suppression capabilities to ensure the reliability and longevity of electronic systems.

Features

● V_rwm (Working Peak Reverse Voltage): 5V
● V_BR (Minimum Breakdown Voltage): 6V
● I_pp @ 10/1000μs (Peak Pulse Current): 9A with an 80/20μs waveform
● V_C (Clamping Voltage): 12V

APPLICATIONS

● Notebook Computers

● Cellular Phone Base Stations

● Personnal Digital Assistant (PDA)

● Digital Cameras

IEC COMPATIBILITY (EN61000-4)

●  61000-4-2 (ESD): Air - 15kV, Contact - 8kV

●  61000-4-4 (EFT): 40A - 5/50ns

FEATURES

● 100 Watts Peak Pulse Power per Line (tp=8/20µs)

●  Monolithic Design

●  Available in Multiple Voltage Types Ranging From 5V to 24V

●  Protect 4 Lines Bidirectional and 5 Lines Unidirectional

●  ESD Protection > 25 kilovolts

●  Low Clamping Voltage

●  RoHS Compliant in Lead-Free Versions
